| Brand Name: | Jinxi Pipe |
| Model Number: | Super large diameter welded pipe |
| MOQ: | 1 |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 100000 |
Pipe Type: SSAW steel Pipe,Spirally Submerged Arc Welding Pipe ,SAWH Pipe, Sprial Steel Pipe,Piling Structure SSAW Pipe
Specification: Outer diameter: 219mm-4064mm
Wall thickness: 3.2mm-40mm
LENGTH: 5.8/6/11.8/12/18/32meters
Standard&Grade: ASTM A53: Gr.A, Gr.B;API 5L:Gr.A,Gr.B,X42,X46, X52,X56,X60,X65 PSL1 and PSL2; ASTM A252, ASTM A500, JIS G3466, AN/NZS 1163, AN NZS1074, EN10219, EN10217 and etc.
End: Square Ends/Plain Ends (straight cut, saw cut, torch cut),Beveled/Threaded Ends
Surface: Black Painting/Oil Painting/Anti-Rust oil/Anti-Corrosive Coating
Application: Oil and gas pipeline, water transmission, liquid transportation, Building construction, Steel structure construction, Offshore/Onshore construction, Piling works, Electricity, Heating power and etc

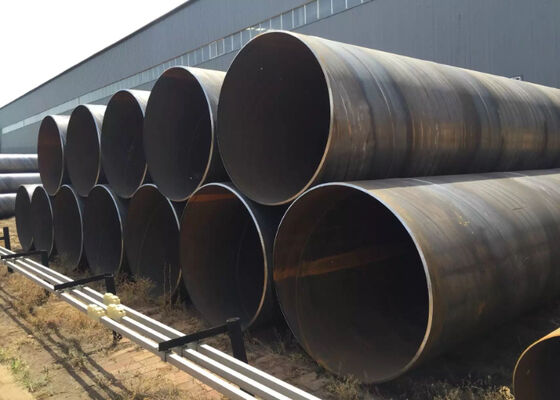

SSAW Steel pipe(Spiral steel pipe), also known as spiral welded pipe, is made by rolling low-carbon structural steel or low-alloy structural steel strip into a tube blank at a certain spiral angle (called forming angle), and then welding the tube seams. It can produce large-diameter steel pipes with narrower strip steel.
Standard
| Classfication | Standard | Main Products |
| Steel Pipe for Fluid Service | GB/T 14291 | Welded pipe for mine fluid sevice |
| GB/T 3091 | Welded pipe for low pressure fluid service | |
| SY/T 5037 | Spirally submerged arc welded steel pipe for pipelines for low pressure fluid service | |
| ASTM A53 | Black and hot-hipped galvanized welded and seamless steel pipe | |
| BS EN10217-2 | Welded steel tybes for pressure purposes - delivery technical conditions - part2: Electric welded non- alloy and alloy steel tubes with specified elevated temperature properties | |
| BS EN10217-5 | Welded steel tybes for pressure purposes - delivery technical conditions - part5: submerged arc welded non-alloy and alloy steel tubes with specified elevated temperature properties | |
| Steel Pipe for Ordinary Structure | GB/T 13793 | Longitudinally electric resistance welded steel pipe |
| SY/T 5040 | Spirally submerged arc welded steel pipe piles | |
| ASTM A252 | Welded and seamless steel pipe piles | |
| BS EN10219-1 | Cold formed welded structural hollow sections of non-alloy and fine grain steels - part1: Technical delivert conditions | |
| BS EN10219-2 | Cold formed welded structural hollow sections of non-alloy and fine grain steels - part2: tolerances dimmsions and sectional properties | |
| Line Pipe | GB/T 9711.1 | Steel pipe for pipeline transportation system of petroleum and natural gas industries(Class A steel pipe) |
| GB/T 9711.2 | Steel pipe for pipeline transportation system of petroleum and natural gas industries(Class B steel pipe) | |
| API 5L PSL1/2 | Line pipe | |
| Casing | API 5CT/ ISO 11960 PSL1 | Steel pipe for use as casing or tubing for wells of petroleum and natural gas industries |
Chemical Analysis and Mechanical Properties of SSAW Steel Pipe
| Standard | Grade | Chemical Composition(max)% | Mechanical Properties(min) | |||||
| C | Si | Mn | P | S | Tensile Strength(Mpa) | Yield Strength(Mpa) | ||
| API 5L PSL1 | A | 0.22 | - | 0.9 | 0.03 | 0.03 | 335 | 335 |
| B | 0.26 | - | 1.2 | 0.03 | 0.03 | 415 | 415 | |
| X42 | 0.26 | - | 1.3 | 0.03 | 0.03 | 415 | 415 | |
| X46 | 0.26 | - | 1.4 | 0.03 | 0.03 | 435 | 435 | |
| X52 | 0.26 | - | 1.4 | 0.03 | 0.03 | 460 | 460 | |
| X56 | 0.26 | - | 1.4 | 0.03 | 0.03 | 490 | 490 | |
| X60 | 0.26 | - | 1.4 | 0.03 | 0.03 | 520 | 520 | |
| X65 | 0.26 | - | 1.45 | 0.03 | 0.03 | 535 | 535 | |
| X70 | 0.26 | - | 1.65 | 0.03 | 0.03 | 570 | 570 | |
| API 5L PSL2 | B | 0.22 | 0.45 | 1.2 | 0.025 | 0.015 | 415 | 415 |
| X42 | 0.22 | 0.45 | 1.3 | 0.025 | 0.015 | 415 | 415 | |
| X46 | 0.22 | 0.45 | 1.4 | 0.025 | 0.015 | 435 | 435 | |
| X52 | 0.22 | 0.45 | 1.4 | 0.025 | 0.015 | 460 | 460 | |
| X56 | 0.22 | 0.45 | 1.4 | 0.025 | 0.015 | 490 | 490 | |
| X60 | 0.12 | 0.45 | 1.6 | 0.025 | 0.015 | 520 | 520 | |
| X65 | 0.12 | 0.45 | 1.6 | 0.025 | 0.015 | 535 | 535 | |
| X70 | 0.12 | 0.45 | 1.7 | 0.025 | 0.015 | 570 | 570 | |
| X80 | 0.12 | 0.45 | 1.85 | 0.025 | 0.015 | 625 | 625 | |
| ASTM A53 | A | 0.25 | 0.1 | 0.95 | 0.05 | 0.045 | 330 | 330 |
| B | 0.3 | 0.1 | 1.2 | 0.05 | 0.045 | 415 | 415 | |
| ASTM A252 | 1 | - | - | - | 0.05 | - | 345 | 345 |
| 2 | - | - | - | 0.05 | - | 414 | 414 | |
| 3 | - | - | - | 0.05 | - | 455 | 455 | |
| EN10217-1 | P195TR1 | 0.13 | 0.35 | 0.7 | 0.025 | 0.02 | 320 | 320 |
| P195TR2 | 0.13 | 0.35 | 0.7 | 0.025 | 0.02 | 320 | 320 | |
| P235TR1 | 0.16 | 0.35 | 1.2 | 0.025 | 0.02 | 360 | 360 | |
| P235TR2 | 0.16 | 0.35 | 1.2 | 0.025 | 0.02 | 360 | 360 | |
| P265TR1 | 0.2 | 0.4 | 1.4 | 0.025 | 0.02 | 410 | 410 | |
| P265TR2 | 0.2 | 0.4 | 1.4 | 0.025 | 0.02 | 410 | 410 | |
| EN10217-2 | P195GH | 0.13 | 0.35 | 0.7 | 0.025 | 0.02 | 320 | 320 |
| P235GH | 0.16 | 0.35 | 1.2 | 0.025 | 0.02 | 360 | 360 | |
| P265GH | 0.2 | 0.4 | 1.4 | 0.025 | 0.02 | 410 | 410 | |
| EN10217-5 | P235GH | 0.16 | 0.35 | 1.2 | 0.025 | 0.02 | 360 | 360 |
| P265GH | 0.2 | 0.4 | 1.4 | 0.025 | 0.02 | 410 | 410 | |
| EN10219-1 | S235JRH | 0.17 | - | 1.4 | 0.04 | 0.04 | 360 | 360 |
| S275JOH | 0.2 | - | 1.5 | 0.035 | 0.035 | 410 | 410 | |
| S275J2H | 0.2 | - | 1.5 | 0.03 | 0.03 | 410 | 410 | |
| S355JOH | 0.22 | 0.55 | 1.6 | 0.035 | 0.035 | 470 | 470 | |
| S355J2H | 0.22 | 0.55 | 1.6 | 0.03 | 0.03 | 470 | 470 | |
| S355K2H | 0.22 | 0.55 | 1.6 | 0.03 | 0.03 | 470 | 470 | |
| Standard | Tolerance of Pipe Body | Tolerance of Pipe End | Tolerance of Wall Thickness | |||
| Out Diameter | Tolerance | Out Diameter | Tolerance | |||
| GB/T3091 | OD≤48.3mm | ≤±0.5 | OD≤48.3mm | – | ≤±10% | |
| 48.3 ≤219mm | ≤±1.0% | 48.3 | – | |||
| ≤273.1mm | ||||||
| 219 ≤508mm | ≤±0.75% | 219 | -0.8～+2.4 | |||
| ≤508mm | ||||||
| OD>508mm | ≤±1.0% | OD>508mm | -0.8～+3.2 | |||
| GB/T9711.1 | OD≤48.3mm | -0.79～+0.41 | – | – | OD≤73 | -12.5%～+20% |
| 60.3 ≤457mm | ≤±0.75% | OD≤219mm | -0.4～+1.59 | 88.9≤OD≤457 | -12.5%～+15% | |
| 508 ≤941mm | ≤±1.0% | OD≥323.9 | -0.79～+2.38 | OD≥508 | -10.0%～+17.5% | |
| OD>941mm | ≤±1.0% | – | – | – | – | |
| GB/T9711.2 | 60 ≤610mm | ±0.75%D～±3mm | 60 ≤610mm | ±0.5%D～±1.6mm | 4mm | ±12.5%T～±15.0%T |
| 610 ≤1430mm | ±0.5%D～±4mm | 610 ≤1430mm | ±0.5%D～±1.6mm | WT≥25mm | -3.00mm～+3.75mm | |
| OD>1430mm | – | OD>1430mm | – | – | -10.0%～+17.5% | |
| SY/T5037 | OD<508mm | ≤±0.75% | OD<508mm | ≤±0.75% | OD<508mm | ≤±12.5% |
| OD≥508mm | ≤±1.00% | OD≥508mm | ≤±0.50% | OD≥508mm | ≤±10.0% | |
| API 5L PSL1/PSL2 | OD<60.3 | -0.8mm～+0.4mm | OD≤168.3 | -0.4mm～+1.6mm | WT≤5.0 | ≤±0.5 |
| 60.3≤OD≤168.3 | ≤±0.75% | 168.3 ≤610 | ≤±1.6mm | 5 | ≤±0.1T | |
| 168.3 ≤610 | ≤±0.75% | 610 ≤1422 | ≤±1.6mm | T≥15.0 | ≤±1.5 | |
| 610 ≤1422 | ≤±4.0mm | OD>1422 | – | – | – | |
| OD>1422 | – | – | – | – | – | |
| API 5CT | OD<114.3 | ≤±0.79mm | OD<114.3 | ≤±0.79mm | ≤-12.5% | |
| OD≥114.3 | -0.5%～1.0% | OD≥114.3 | -0.5%～1.0% | ≤-12.5% | ||
| ASTM A53 | ≤±1.0% | ≤±1.0% | ≤-12.5% | |||
| ASTM A252 | ≤±1.0% | ≤±1.0% | ≤-12.5% | |||

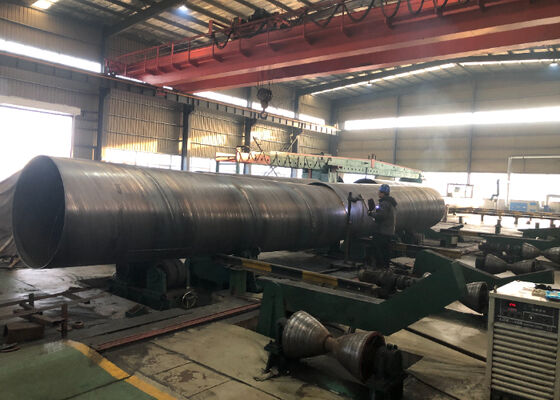

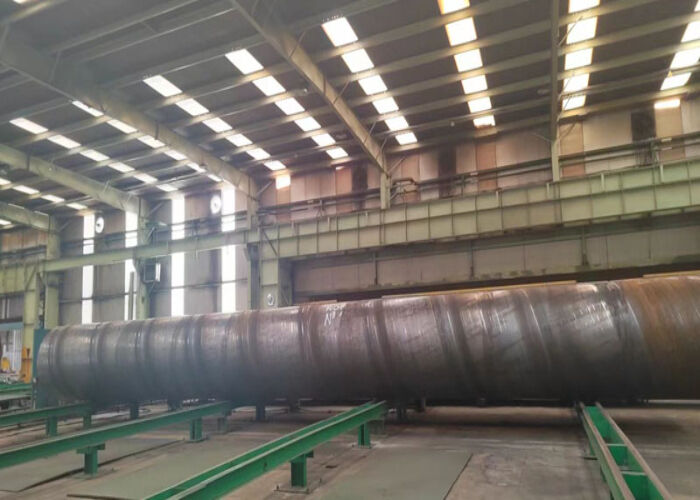

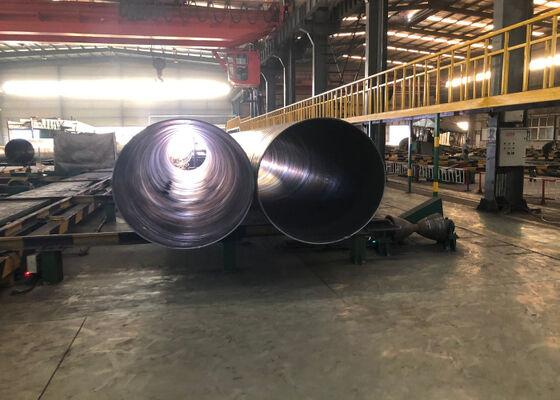

Manufacturing process of SSAW steel pipe:
Raw Material Inspection → Strip Joining → Pre-forming Treatment → Conveyor Control → Roll Forming → Gap Control → Welding → NDT (Non-Destructive Testing) → Single Pipe Cutting → Batch Inspection → Defect Repair → Weld Inspection → Hydrostatic Testing → End Finishing
Packing & Loading
→SSAW Pipe is transported in containers
(Nesting Packaging): Large-diameter SSAW pipes can be nested within one another, similar to Russian dolls, to utilize the internal space of larger pipes and minimize the volume of the cargo. This is a "game-changer" for reducing freight expenses and improving supply chain efficiency.
SSAW Pipe is transported by bulk carrier
