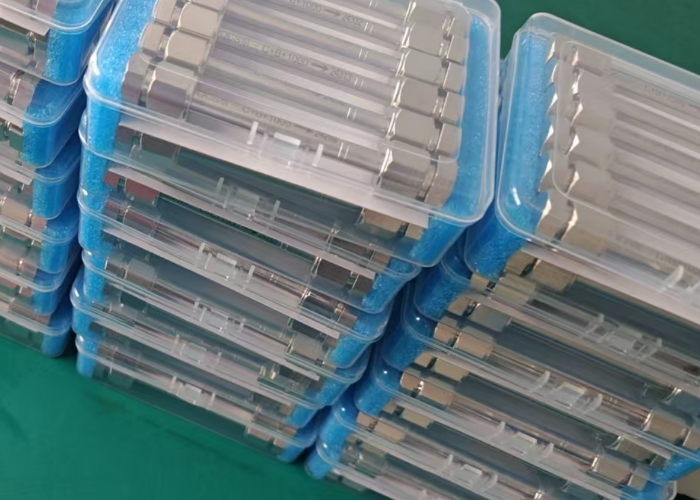

VOCs combined sorbent tube sampling tube
Description
The VOCs multi-bed adsorbent sampling tube is a high-performance consumable designed specifically for the collection of volatile organic compounds (VOCs), widely used in fields such as environmental monitoring, industrial hygiene, and indoor air quality testing. Constructed from high-quality stainless steel (304 or 316L), the tube measures ¼ inch × 3½ inches (6.35 mm O.D., 89 mm length) and features optional sealing caps made of copper or PTFE.
This product strictly complies with the HJ 734-2014 standard ("Stationary source emission—Determination of volatile organic compounds—Solid-phase adsorption-thermal desorption/gas chromatography-mass spectrometry") and the EPA TO-17 standard. It offers three standardized adsorbent combinations (Combinations 1, 2, and 3) capable of efficiently capturing VOCs ranging from C₃ to C₁₆, making it an ideal choice for monitoring stationary source emissions, ambient air, and the 57 ozone precursors associated with PAMS (Photochemical Assessment Monitoring Stations).
VOCs Combined Sampling Tube Key Specifications
| Parameter | Specification |
| Product Name | VOCs Combined Sampling Tube / VOCs Adsorption Tube |
| Material | 304 Stainless Steel |
| Outer Diameter | ¼ inch (6.35 mm) |
| Length | 3½ inches (89 mm) |
| Surface Roughness | Ra ≤ 0.4 μm (available upon specification) |
| Sealing/Cap Type | Brass/Copper Storage Caps (optional PTFE caps also available) |
| Packaging | 10, 12 tubes per box |
| Conditioning | Pre-conditioned / pre-aged options available |
Our VOCs combined sampling tubes are available in multiple sorbent bed configurations to accommodate different VOC target compound ranges and regulatory methods:
Our VOCs combined sampling tubes are designed and manufactured to meet the stringent requirements of major international and national standards:
| Standard/Method | Application |
| HJ734-2014 | Stationary source emissions – Determination of VOCs by solid phase adsorption-thermal desorption/GC-MS |
| EPA TO-17 | Determination of VOCs in ambient air using sorbent tubes |
| EN ISO 16017 | Indoor, ambient, and workplace air – Sampling and analysis of VOCs by sorbent tube/thermal desorption/GC |
| GB50325-2020 | Indoor environmental pollution control standard for civil buildings |
| GB/T18883-2002 | Indoor air quality standard |
Why Choose Us?
Contact Us
For technical specifications, customized solutions, or to place an order, please contact our sales team. We are committed to providing professional products and responsive service to support your VOCs monitoring needs.
