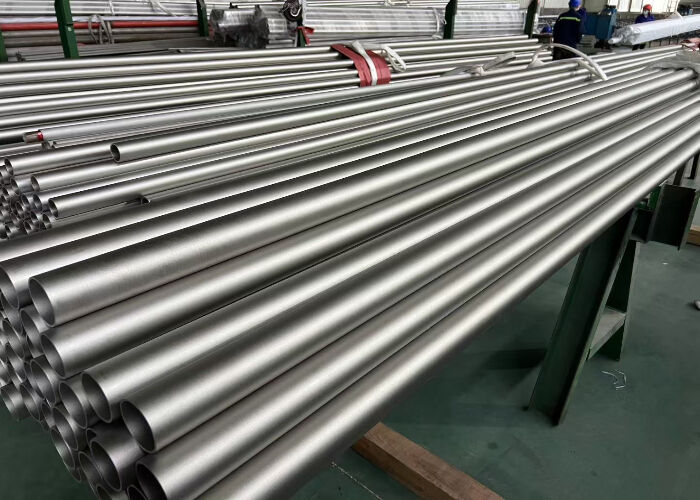

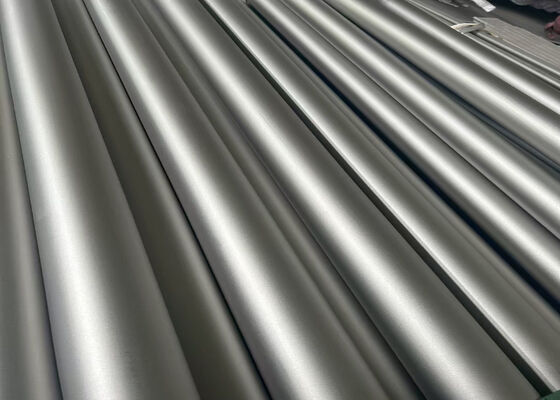

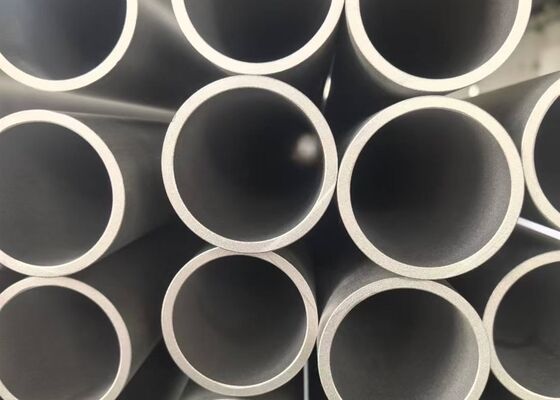

Seamless Stainless Steel Pipe ASTM A312 304L 1/8"-80" OD

Name: Seamless Stainless Steel Pipe ASTM A312 304L 1/8"-80" OD
Brand: Jinxi Steel Industry Group Co.Ltd.
SKU: Stainless steel pipe
Availability: InStock

Brand Name:	Jinxi Pipe
Model Number:	Stainless steel pipe
MOQ:	1
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10000000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001,BV,SGS,TUV,CE

Packaging Details:

Bundles

Highlight:

Stainless steel seamless pipe ASTM A312

304L stainless steel pipe 1/8 inch

Seamless stainless pipe 80 inch OD

Product Description

Stainless Steel Pipe ASTM A312 304L 1/8"-80" OD Seamless

Specifications

Product Name: Stainless Steel Pipe, Stainless Steel Tube, Stainless Steel Tubing, Stainless Steel Seamless Pipe, SS SMLS Pipe
Standard: ASTM A312/ASME A312, ASTM A213/ASME A213, ASTM A269/ASME A269, ASTM B673/ASME B673, ASTM B674/ASME B674, ASTM B677/ASME B677, ASTM B675/B675/ASME B676, ASTM B690/ASME B690, ASTM A789/ASME A789, ASTM A790/ASME A790, ASTM A928/ASME A928, ASTM A270/ASME SA270, EN10357, DIN11850, AS1528.1, ISO2037, ASTM A249/ASME SA249, EN 10217-7, JIS G3463
Grade: 304, 304L, 316, 316L, 309/309S, 310/310S, 321/321H, 347/347H, 317L, 347H, 904L, 330, 254SMO, 410, Duplex2205, S31803, etc.
Steel Pipe Dimensions OD: 1/8"-80"/5.8mm - 2032mm/DN6 - DN2000
Pipe Thickness: 0.3mm - 60mm/SCH 5S - SCH XXS
Length Range: 5.8/11.86 meter, 20 FT (6 meter), 40FT (12 meter) or customized
Ends Type: Beveled ends, Plain ends
Protection Caps: Plastic or iron
Tube Type: Seamless or Welded

Stainless Steel Pipe Standards

American Standard

Standard	Description
A 213 / SA 213	Seamless Ferritic and Austenitic Alloy-steel Boiler, Superheater and Heat-Exchanger Tubes
A 249 / SA 249	Welded Austenitic Steel Boiler, Superheater, Heat Exchanger and Condenser Tubes
A 268 / SA 268	Seamless and Welded Ferritic and Martensitic Stainless Steel Tubing for General Service
A 269	Seamless and Welded Austenitic Stainless Steel Tubing for General Service
A 312 / SA 312	Seamless, Welded and Heavily Cold Worked Austenitic Stainless Steel Pipes
A 376 / SA 376	Seamless Austenitic Steel Pipe for High-temperature Service
A 688 / SA 688	Seamless and Welded Austenitic Stainless Steel Feedwater Heater Tubes
A 789 / SA 789	Seamless and Welded Ferritic/Austenitic Stainless Steel Tubing for General Service
A 790 / SA 790	Seamless and Welded Ferritic/Austenitic Stainless Steel Pipe
A 999 / SA 999	General Requirement for Alloy and Stainless Steel Pipe
A 1016 / SA 1016	General Requirement for Ferritic Alloy Steel, Austenitic Alloy Steel and Stainless Steel Tubes

European Standard

Standard	Description
DIN EN 10216-5	Seamless Steel Tubes for Pressure Purposes
DIN EN 10217-7	Welded Steel Tubes for Pressure Purposes
DIN EN 10297-2	Seamless Steel Tubes for Mechanical and General Engineering Purposes
DIN EN 10305-1	Steel Tubes for Precision Application

German Standard

Standard	Description
DIN 11850	Stainless Steel Tubes for the Food and Chemical Industries - Dimensions, Materials
DIN 17455	General Purpose Welded Circular Stainless Steel Tubes
DIN 17456	General Purpose Seamless Circular Stainless Steel Tubes
DIN 17457	Welded Circular Austenitic Stainless Steel Tubes Subject to Special Requirement
DIN 17458	Seamless Circular Austenitic Stainless Steel Tubes Subject to Special Requirement
DIN 28180	Seamless Steel Tubes for Heat-exchanger
DIN 11850	Welded Tubes and Pipe for Food, Beverages, Chemical & Pharmaceuticals Industry

Russian Standard

GOST 9941

Seamless and Warm-deformed Tubes Made from Corrosion-resistant Steel

Norsok Standard

Norsok M - 650	Qualification of Manufacturers of Special Material
Norsok M - 630	Material Data Sheets and Element Data Sheets for Piping

Stainless Steel Pipe Grades

Material	ASTM Grade	UNS Grade	DIN Grade	JIS Grade	EN Grade
Austenitic	TP 304	S30400	1.4301	SUS304TB	X5CrNi18-20
	TP 304L	S30403	1.4306		X2CrNi19-11
	TP 304L	S30403	1.4307	SUS304LTB	X2CrNi18-9
	TP 304H	S30409	1.4948	SUS304HTB	X6CrNi18-10
	TP 310S	S31008	1.4845	SUS310STB	X8CrNi25-21
	TP 310H	S31009
			1.4335		X1CrNi25-21
	TP 316	S31600	1.4401	SUS316TB	X5CrNiMo17-12-2
	TP 316L	S31603	1.4404	SUS316LTB	X2CrNiMo17-12-2
	TP 316H	S31609	1.4918	SUS316HTB	X6CrNiMo17-13-2
	TP 316Ti	S31635	1.4571	SUS316TiTB	X6CrNiMo17-12-2
	TP 321	S32100	1.4541	SUS321TB	X6CrNiNb18-10
	TP 312H	S32109	1.4941	SUS321HTB	X6CrNiTiB18-10
	TP 347	S34700	1.455	SUS347TB	X6CrNiNb18-10
	TP 347H	S34709	1.4912	SUS347HTB	X7CrNiNb18-10
Ferritic & Martensitic	TP 405	S41500	1.4002	SUS 405TB	X6CrAl13
	TP 410	S41000	1.4006	SUS 410TB	X12Cr13
	TP 430	S43000	1.4016	SUS 430TB	X6Cr17
Ferritic / Austenitic		UNS S31803
	2205	UNS S32205	1.4462		X2CrNiMoN22-5-3
	2507	UNS S32750	1.441		X2CrNiMoN25-7-4
		UNS S32760	1.4501		X2CrNiMoCuWN25-7-4

Chemical Composition & Mechanical Properties

Grade	UNS Desig	C	Mn	P	S	Si	Cr	Ni	Mb	Ti	Nb	Ta	N	Vn	Cu	Ce	B	Al	Other
TP304	S30400	0.08	2	0.045	0.03	1	18.0–20	8.0–11	. . .	. . .	. . .	. . .	. . .	. . .	. . .	. . .
TP304L	S30403	0.035	2	0.045	0.03	1	18.0–20	8.0–13	. . .	. . .	. . .	. . .	. . .	. . .	. . .	. . .
TP304H	S30409	0.04 – 0.1	2	0.045	0.03	1	18.0–20	8.0–11	. . .	. . .	. . .	. . .	. . .	. . .	. . .	. . .
TP310S	S31008	0.08	2	0.045	0.03	1	24.0- 26	19.0- 22	0.75	. . .	. . .	. . .	. . .	. . .	. . .	. . .
TP310H	S31009	0.04 - 0.1	2	0.045	0.03	1	24.0–26	19.0–22	. . .	. . .	. . .	. . .	. . .	. . .		. . .
TP310H	S31035	0.04 - 0.1	0.6	0.025	0.015	0.4	21.5–23.5	23.5–26.5	. . .	. . .	0.40- 0.6	. . .	0.20- 0.3	. . .	2.5- 3.5	. . .	0.002- 0.008		See Spec
TP316	S31600	0.08	2	0.045	0.03	1	16.0–18	10.0–14	2.00–3	. . .	. . .	. . .	. . .	. . .	. . .	. . .
TP316L	S31603	0.035	2	0.045	0.03	1	16.0–18	10.0–14	2.00–3	. . .	. . .	. . .	. . .	. . .	. . .	. . .
TP316H	S31609	0.04 – 0.1	2	0.045	0.03	1	16.0–18	10.0–14	2.00–3	. . .	. . .	. . .	. . .	. . .	. . .	. . .
TP317	S31700	0.08	2	0.045	0.03	1	18.0–20	11.0–15	3.0–4	. . .	. . .	. . .	. . .	. . .	. . .	. . .
TP317L	S31703	0.035	2	0.045	0.03	1	18.0–20	11.0–15	3.0–4	. . .	. . .	. . .	. . .	. . .	. . .	. . .
TP321	S32100	0.08	2	0.045	0.03	1	17.0–19	9.0–12	. . .	Ti 5 × (C+N) min, 0.70 max	. . .	. . .	0.1	. . .	. . .	. . .
TP321H	S32109	0.04 – 0.1	2	0.045	0.03	1	17.0–19	9.0–12	. . .	4(C+N) min; 0.70 max	. . .	. . .	0.1	. . .	. . .	. . .
TP321H	S32654	0.02	2.0-4	0.03	0.005	0.5	24.0–25	21.0–23	7.0-8	. . .	. . .	. . .	0.45- 0.55	. . .	0.30-0.6	. . .
TP321H	S33228	0.04 - 0.08	1	0.02	0.015	0.3	26.0–28	31.0–33	. . .	. . .	0.60- 1	. . .	. . .	. . .	. . .	0.05 - 0.1		0.025
TP321H	S34565	0.03	5.0-7	0.03	0.01	1	23.0–25	16.0–18	4.0-5	. . .	0.1	. . .	0.40- 0.6	. . .	. . .	. . .
TP347	S34700	0.08	2	0.045	0.03	1	17.0–19	9.0–13	. . .	. . .	See Spec	. . .	. . .	. . .	. . .	. . .
TP347H	S34709	0.04 – 0.1	2	0.045	0.03	1	17.0–19	9.0–13	. . .	. . .	See Spec	. . .	. . .	. . .	. . .	. . .
Alloy 20	N08020	0.07	2	0.045	0.035	1	19.0–21	32.0–38	2.0–3	. . .	See Spec	See Spec	. . .	. . .	3.0– 4	. . .	. . .	. . .
Alloy 20	N08367	0.03	2	0.04	0.03	1	20.0–22	23.5–25.5	6.0–7	. . .	. . .	. . .	0.18–0.25	. . .	0.75	. . .	. . .	. . .
Alloy 20	N08028	0.03	2.5	0.03	0.03	1	26.0–28	30.0–34	3.0–4						0.60–1.4
Alloy 20	N08029	0.02	2	0.025	0.015	0.6	26.0–28	30.0–34	4.0–5						0.6– 1.4

Tensile Requirements

Grade	UNS Designation	Tensile Strength, min ksi [MPa]	Yield Strength, min ksi [MPa]	Other
TP304	S30400	75 [515]	30 [205]
TP304L	S30403	70 [485]	25 [170]

Heat Treatment Chart

Grade	UNS Designation	Finish	Heating Temperature
TP304H	S30409, S30415	Cold	1900 °F [1040 °C]
TP304H	S30409, S30415	Hot	1900 °F [1040 °C]

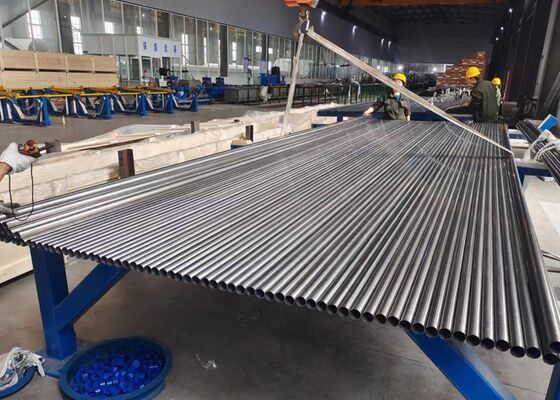

Stainless Steel Pipe Manufacture Process

Packing & Loading

1/2"-2" Plain end with black oil paint, caps both ends, bundles with loading belt.
2"-4" Beveled end with black oil paint, caps both ends, bundles with loading belt.
10"-20" Beveled end with black oil paint, caps both ends, loose packed into container.
