| Brand Name: | Jinxi Pipe |
| Model Number: | Stainless steel pipe |
| MOQ: | 1 |
| Price: | 3000USD/TON |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 10000000 |

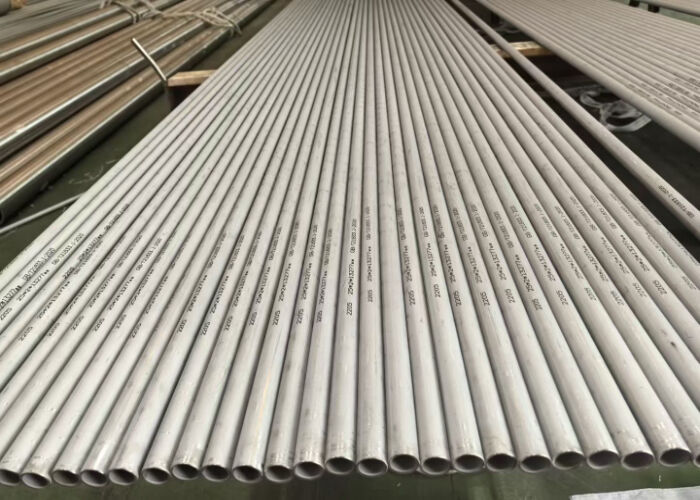

ASTM A312 TP317L Stainless Steel Tube For Chemical and Petrochemical Processing
Specifications
ASTM A312 TP317L (UNS S31703) is a molybdenum-bearing austenitic stainless steel with greatly increased resistance to chemical attack as compared to the conventional chromium-nickel austenitic stainless steels such as Alloy 304. In addition, Alloy 317L offers higher creep, stress-to-rupture, and tensile strength at elevated temperatures than conventional stainless steels. It is a low carbon or “L” grade which provides resistance to sensitization during welding and other thermal processes.
| American Standard | Standard Name |
| A 312 / SA 312 | Seamless,Welded and Heavily Cold Worked Austenitic Stainless Steel Pipes |
ASTM A312 TP317L Stainless Steel Tube Chemical Composition
(Sources American Standard A312 / A312M TABLE 1 Chemical Requirements)
| Steel Grade | UNS Designation A | ASTM A312 TP317L Chemical Composition % Max | |||||||
| C | Mn | P | S | Si | Cr | Ni | Mo | ||
| TP317L | S31703 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 11.0-15.0 | 3.0-4.0 |
ASTM A312 TP317L Stainless Steel Tube Mechanical Properties
(Sources American Standard A312 / A312M TABLE 4 Tensile and Hardness Requirements)
| Steel Grade | UNS Designation |
Tensile Strength | Yield Strength | Elongation %, Min |
| Ksi (MPa), Min. | Ksi (MPa), Min. | |||
| TP317L | S31703 | 75(515) | 30(205) | 35 |
ASTM A312 TP317L Stainless Steel Tube Application
