ASTM A513 1026 ERW Steel Pipe for Machinery and Industrial Equipment
Description
ASTM A513 1026 steel pipe is a high-quality, cold-drawn (DOM) or ERW (Electric Resistance Welded) carbon steel tube with a 0.26% carbon content, known for its excellent strength, tight tolerances, machinability, and formability, making it ideal for demanding mechanical parts in automotive, agricultural, and industrial uses like axles, shafts, bushings, and hydraulic cylinders.
| American Standard | Standard Name |
| A513 / A513M | Standard Specification for Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing |
ASTM A513 1026 ERW Steel Pipe Chemical Composition
Sources American Standard A513 / A513M TABLE 1 Chemical Requirements for Standard Low-Carbon Steels
| Grade Designation | Chemical Composition Limits, % | ||||||
| Carbon | Manganese | Phosphorus, max |
Sulfur, max |
Nickel | Chromium | Molybdenum | |
| MT1010 | 0.02-0.15 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| MT1015 | 0.10-0.20 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| MT X1015 | 0.10-0.20 | 0.60-0.90 | 0.035 | 0.035 | - | - | - |
| MT1020 | 0.15-0.25 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| MT X1020 | 0.15-0.25 | 0.70-1.00 | 0.035 | 0.035 | - | - | - |
| 1006 | 0.08 max | 0.45 max | 0.030 | 0.035 | - | - | - |
| 1008 | 0.10 max | 0.5 max | 0.035 | 0.035 | - | - | - |
| 1009 | 0.15 max | 0.6 max | 0.035 | 0.035 | - | - | - |
| 1010 | 0.08-0.13 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| 1012 | 0.10-0.15 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| 1015 | 0.13-0.18 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| 1016 | 0.13-0.18 | 0.60-0.90 | 0.035 | 0.035 | - | - | - |
| 1017 | 0.15-0.20 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| 1018 | 0.15-0.20 | 0.60-0.90 | 0.035 | 0.035 | - | - | - |
| 1019 | 0.15-0.20 | 0.70-1.00 | 0.035 | 0.035 | - | - | - |
| 1020 | 0.18-0.23 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| 1021 | 0.18-0.23 | 0.60-0.90 | 0.035 | 0.035 | - | - | - |
| 1022 | 0.18-0.23 | 0.70-1.00 | 0.035 | 0.035 | - | - | - |
| 1023 | 0.20-0.25 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| 1024 | 0.18-0.25 | 1.30-1.65 | 0.035 | 0.035 | - | - | - |
| 1025 | 0.22-0.28 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| 1026 | 0.22-0.28 | 0.60-0.90 | 0.035 | 0.035 | - | - | - |
| 1027 | 0.22-0.29 | 1.20-1.55 | 0.035 | 0.035 | - | - | - |
| 1030 | 0.28-0..34 | 0.60-0.90 | 0.035 | 0.035 | - | - | - |
| 1033 | 0.30-0.36 | 0.70-1.00 | 0.035 | 0.035 | - | - | - |
| 1035 | 0.32-0.38 | 0.60-0.90 | 0.035 | 0.035 | - | - | - |
| 1040 | 0.37-0.44 | 0.60-0.90 | 0.040 | 0.050 | - | - | - |
| 1050 | 0.48-0.55 | 0.60-0.90 | 0.040 | 0.050 | - | - | - |
| 1060 | 0.55-0.65 | 0.60-0.90 | 0.040 | 0.050 | - | - | - |
| 1340 | 0.38-0.43 | 1.60-1.90 | 0.035 | 0.040 | 0.15-0.35 | - | - |
| 1524 | 0.19-0.25 | 1.35-1.65 | 0.040 | 0.050 | - | - | - |
| 4118 | 0.18-0.23 | 0.70-0.90 | 0.035 | 0.040 | 0.15-0.35 | 0.40-0.60 | 0.8-0.15 |
| 4130 | 0.28-0.33 | 0.40-0.60 | 0.035 | 0.040 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
| 4140 | 0.38-0.43 | 0.75-1.0 | 0.035 | 0.040 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
| 5130 | 0.28-0.33 | 0.70-0.90 | 0.035 | 0.040 | 0.15-0.35 | 0.80-1.10 | - |
| 8620 | 0.18-0.23 | 0.70-0.90 | 0.035 | 0.040 | 0.15-0.35 | 0.40-0.70 | 0.15-0.25 |
| 8630 | 0.28-0.33 | 0.70-0.90 | 0.035 | 0.040 | 0.15-0.35 | 0.40-0.70 | 0.15-0.25 |
ASTM A513 1026 ERW Steel Pipe Mechanical Properties
Sources American Standard A513 / A513M TABLE S5.1 Mechanical Properties for Round Tubing
| A513 Round Tubing | Yield Strength, Ksi (MPa), min | Ultimate Strength, ksi (MPa), min | Elongation in 2 in. or 50 mm. % min | RB min | RB max |
| As-Welded Tubing | |||||
| 1008 | 30 (205) | 42 (290) | 15 | 50 | |
| 1010 | 32 (220) | 45 (310) | 15 | 55 | |
| 1015 | 35 (240) | 48 (330) | 15 | 58 | |
| 1020 | 38 (260) | 52 (360) | 12 | 62 | |
| 1026 | 45 (310) | 62 (425) | 12 | 68 | |
| 4130 | 55 (380) | 72 (495) | 10 | 80 | |
| 4140 | 70 (485) | 90 (620) | 10 | 85 | |
| ... | |||||
| Normalized Tubing | |||||
| 1008 | 23 (160) | 38 (260) | 30 | 65 | |
| 1010 | 25 (170) | 40 (275) | 30 | 65 | |
| 1015 | 30 (205) | 45 (310) | 30 | 70 | |
| 1020 | 35 (240) | 50 (345) | 25 | 75 | |
| 1026 | 40 (275) | 60 (414) | 25 | 85 | |
| 4130 | 50 (345) | 70 (480) | 20 | 100 | |
| 4140 | 65 (450) | 90 (620) | 20 | 105 | |
| ... | |||||
| Sink-Drawn Tubing | |||||
| 1008 | 38 (260) | 48 (330) | 8 | 65 | |
| 1010 | 40 (275) | 50 (345) | 8 | 65 | |
| 1015 | 45 (310) | 55 (380) | 8 | 67 | |
| 1020 | 50 (345) | 60 (415) | 8 | 70 | |
| 1026 | 55 (380) | 70 (480) | 7 | 77 | |
| ... | |||||
| DOM Tubing | |||||
| 1008 | 50 (345) | 60 (415) | 5 | 73 | |
| 1010 | 50 (345) | 60 (415) | 5 | 73 | |
| 1015 | 55 (380) | 65 (450) | 5 | 77 | |
| 1020 | 60 (415) | 70 (480) | 5 | 80 | |
| 1026 | 70 (480) | 80 (550) | 5 | 85 | |
| 4130 | 85 (585) | 95 (655) | 5 | 90 | |
| 4140 | 100 (690) | 110 (760) | 5 | 90 | |
| ... | |||||
| DOM Stress-Relieved Tubing | |||||
| 1008 | 45 (310) | 55 (380) | 12 | 68 | |
| 1010 | 45 (310) | 55 (380) | 12 | 68 | |
| 1015 | 50 (345) | 60 (415) | 12 | 72 | |
| 1020 | 55 (380) | 65 (450) | 10 | 75 | |
| 1026 | 65 (450) | 75 (515) | 10 | 80 | |
| 4130 | 80 (550) | 90 (620) | 10 | 87 | |
| 4140 | 95 (655) | 105 (725) | 10 | 90 | |
| ... | |||||
ASTM A513 1026 ERW Steel Pipe Manufacturing Proces
ASTM A513 1026 ERW Steel Pipe Application

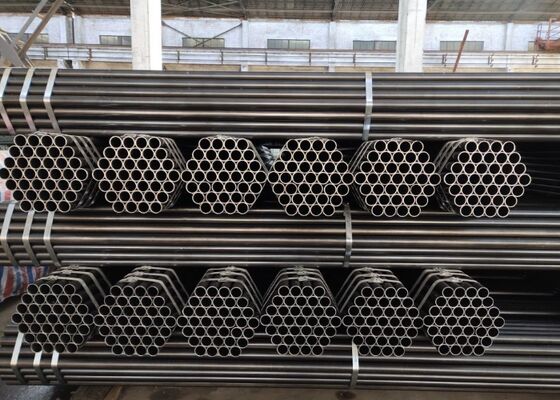

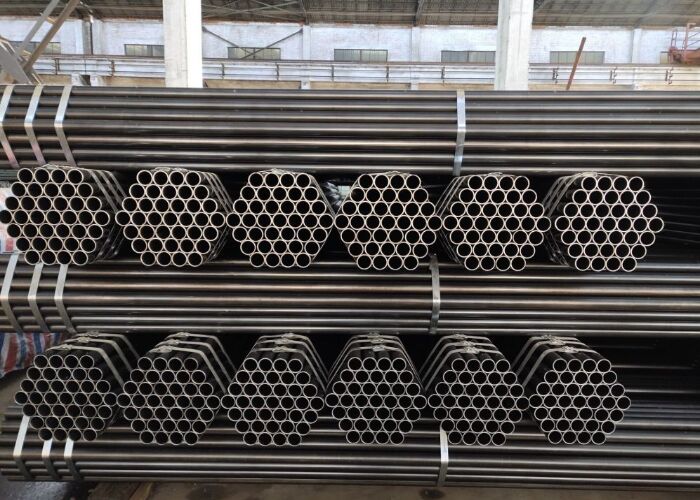

ASTM A513 1026 ERW Steel Pipe Packing & Loading
a. 1/2"-2"Plain end with black oil paint, caps both ends, bundles with loading belt.
b. 2"-4"Beveled end with black oil paint, caps both ends, bundles with loading belt.
c. 10"-20"Beveled end with black oil paint, caps both ends, loose packed in to container.
→ ASTM A513 1026 ERW Steel Pipe is transported in containers
