| Brand Name: | Jinxi Pipe |
| Model Number: | Galvanied Steel Pipe |
| MOQ: | 1 |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 1000000 |

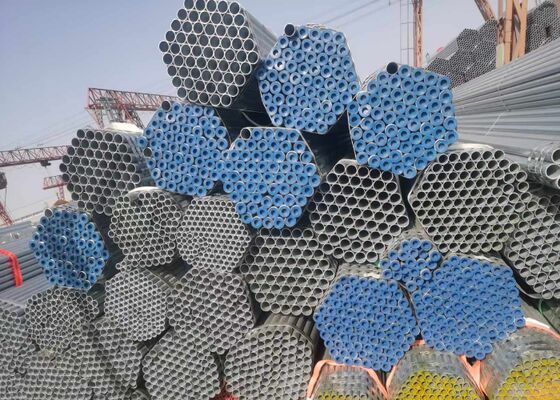

ASTM A53 Galvanized Welded Steel Pipe For Structural and Engineering
Description
ASTM A53 galvanized steel pipe is a hot dip galvanizing process used in the astm a53 steel pipe inside and outside, it can be improves the corrosion resistance of the steel pipe to extend the service life of the steel pipe.
| American Standard | Standard Name |
| ASTM A53 | Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless |
ASTM A53 Galvanized Welded Steel Pipe Chemical Composition
Sources American Standard A53 / A53M TABLE 1 Chemical Requirements
| Chemical Requirements | Type S (seamless) | Type E(electric-resistance welded) | ||
| Grade A | Grade B | Grade A | Grade B | |
| Carbon max. % | 0.25 | 0.3 | 0.25 | 0.3 |
| Manganese % | 0.95 | 1.2 | 0.95 | 1.2 |
| Phosphorous, max. % | 0.05 | 0.05 | 0.05 | 0.05 |
| Sulfur, max. % | 0.045 | 0.045 | 0.045 | 0.045 |
| Copper, max.%A | 0.4 | 0.4 | 0.4 | 0.4 |
| Nickel, max. %A | 0.4 | 0.4 | 0.4 | 0.4 |
| Chromium, max. %A | 0.4 | 0.4 | 0.4 | 0.4 |
| Molybdenum, max. %A | 0.15 | 0.15 | 0.15 | 0.15 |
| Vanadium, max. %A | 0.08 | 0.08 | 0.08 | 0.08 |
| A The combination of these five elements shall not exceed 1.00 %. | ||||
ASTM A53 Galvanized Welded Steel Pipe Mechanical Properties
Sources American Standard A53 / A53M TABLE 2 Tensile Requirements
| Tensile Requirements | Seamless and Electric-resistance-welded | |
| Grade A | Grade B | |
| Tensile Strength, min., psi | 48000[330] | 60000[415] |
| Yield Strength, min., psi | 30000[205] | 35000[240] |
Difference between Hot-Dip Galvanizing and Pre-Galvanizing
| Feature | Hot Dip Galvanization | Pre-Galvanizing |
| Coating Thickness | Thick coating with minimum average requirements of 45-85μm within BS EN ISO 1461 | The coating thickness may vary, but it is typically circa 20μm for sheets and 20-30渭m for tubes |
| Coating Continually | Continuous coating over the whole object | The uncoated area at cut edges |
| Coating Bond | Strong metallurgical bond with the base steel | Strong metallurgical bond with the base steel |
| Coating Formability | Forming after hot dipped galvanizing is not advised as it may damage the coating | A thin coating may be normally formed without any damage |
| Coating Appearance | Normally bright, but can be variable | Normally bright |
| Abrasion Resistance | A thicker layer of hard zinc-iron alloy gives a high resistance to abrasion | Thin alloy layer with reduced resistance to abrasion |
| Sacrificial Protection | Offer the highest level of sacrificial protection | Reduced sacrificial protection due to thin layer coating and at some uncoated areas (cut edges) |
ASTM A53 Galvanized Welded Steel Pipe Dimensions Sizes
| NOMINAL PIPE SIZE |
OD | NOMINAL WALL THICKNESS | |||||||||||||
| (mm) | |||||||||||||||
| DN | NB(inch) | ASME | SCH10 | SCH20 | SCH30 | STD | SCH40 | SCH60 | XS | SCH80 | SCH100 | SCH120 | SCH140 | SCH160 | XXS |
| 15 | 1/2" | 21.3 | 2.11 | 2.41 | 2.77 | 2.77 | 3.73 | 3.73 | 4.78 | 7.47 | |||||
| 20 | 3/4" | 26.7 | 2.11 | 2.41 | 2.87 | 2.87 | 3.91 | 3.91 | 5.56 | 7.82 | |||||
| 25 | 1" | 33.4 | 2.77 | 2.9 | 3.38 | 3.38 | 4.55 | 4.55 | 6.35 | 9.09 | |||||
| 32 | 1.1/4" | 42.2 | 2.77 | 2.97 | 3.56 | 3.56 | 4.85 | 4.85 | 6.35 | 9.7 | |||||
| 40 | 1.1/2" | 48.3 | 2.77 | 3.18 | 3.68 | 3.68 | 5.08 | 5.08 | 7.14 | 10.15 | |||||
| 50 | 2" | 60.3 | 2.77 | 3.18 | 3.91 | 3.91 | 5.54 | 5.54 | 8.74 | 11.07 | |||||
| 65 | 2.1/2" | 73 | 3.05 | 4.78 | 5.16 | 5.16 | 7.01 | 7.01 | 9.53 | 14.02 | |||||
| 80 | 3" | 88.9 | 3.05 | 4.78 | 5.49 | 5.49 | 7.62 | 7.62 | 11.13 | 15.25 | |||||
| 90 | 3.1/2" | 101.6 | 3.05 | 4.78 | 5.74 | 5.74 | 8.08 | 8.08 | |||||||
| 100 | 4" | 114.3 | 3.05 | 4.78 | 6.02 | 6.02 | 8.56 | 8.56 | 11.13 | 13.49 | 17.12 | ||||
| 125 | 5" | 141.3 | 3.4 | 6.55 | 6.55 | 9.53 | 9.53 | 12.7 | 15.88 | 19.05 | |||||
| 150 | 6" | 168.3 | 3.4 | 7.11 | 7.11 | 10.97 | 10.97 | 14.27 | 18.26 | 21.95 | |||||
| 200 | 8" | 219.1 | 3.76 | 6.35 | 7.04 | 8.18 | 8.18 | 10.31 | 12.7 | 12.7 | 15.09 | 18.26 | 20.62 | 23.01 | 22.23 |
| 250 | 10" | 273 | 4.19 | 6.35 | 7.8 | 9.27 | 9.27 | 12.7 | 12.7 | 15.09 | 18.26 | 21.44 | 25.4 | 28.58 | 25.4 |
| 300 | 12" | 323.8 | 4.57 | 6.35 | 8.38 | 9.53 | 10.31 | 14.27 | 12.7 | 17.48 | 21.44 | 25.4 | 28.58 | 33.32 | 25.4 |
| 350 | 14" | 355.6 | 6.35 | 7.92 | 9.53 | 9.53 | 11.13 | 15.09 | 12.7 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 | |
| 400 | 16" | 406.4 | 6.35 | 7.92 | 9.53 | 9.53 | 12.7 | 16.66 | 12.7 | 21.44 | 26.19 | 30.96 | 36.53 | 40.19 | |
| 450 | 18" | 457.2 | 6.35 | 7.92 | 11.13 | 9.53 | 14.27 | 19.05 | 12.7 | 23.83 | 39.36 | 34.93 | 39.67 | 45.24 | |
| 500 | 20" | 508 | 6.35 | 9.53 | 12.7 | 9.53 | 15.09 | 20.62 | 12.7 | 26.19 | 32.54 | 38.1 | 44.45 | 50.01 | |
| 550 | 22" | 558.8 | 6.35 | 9.53 | 12.7 | 9.53 | 22.23 | 12.7 | 28.58 | 34.93 | 41.28 | 47.63 | 53.98 | ||
| 600 | 24" | 609.6 | 6.35 | 9.53 | 14.27 | 9.53 | 17.48 | 24.61 | 12.7 | 30.96 | 38.89 | 46.02 | 52.37 | 59.54 | |
| 650 | 26" | 660.4 | 7.92 | 12.7 | 9.53 | 12.7 | |||||||||
| 700 | 28" | 711.2 | 7.92 | 12.7 | 15.88 | 9.53 | 12.7 | ||||||||
| 750 | 30" | 762 | 7.92 | 12.7 | 15.88 | 9.53 | 12.7 | ||||||||
| 800 | 32" | 812.8 | 7.92 | 12.7 | 15.88 | 9.53 | 17.48 | 12.7 | |||||||
| 850 | 34" | 863.6 | 7.92 | 12.7 | 15.88 | 9.53 | 17.48 | 12.7 | |||||||
| 900 | 36" | 914.4 | 7.92 | 12.7 | 15.88 | 9.53 | 19.05 | 12.7 | |||||||
ASTM A53 Galvanized Welded Steel Pipe Application
ASTM A53 Galvanized Welded Steel Pipe Packing & Loading
a. 1/2"-2"Plain end with black oil paint, caps both ends, bundles with loading belt.
b. 2"-4"Beveled end with black oil paint, caps both ends, bundles with loading belt.
c. 10"-20"Beveled end with black oil paint, caps both ends, loose packed in to container.
ASTM A53 Galvanized Welded Steel Pipe Shipment Reference
ASTM A53 Galvanized Welded Steel Pipe is transported in containers
