| Brand Name: | Jinxi Pipe |
| Model Number: | Alloy Steel Pipe |
| MOQ: | 1 |
| Price: | 1500 USD/TON |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 100000 |

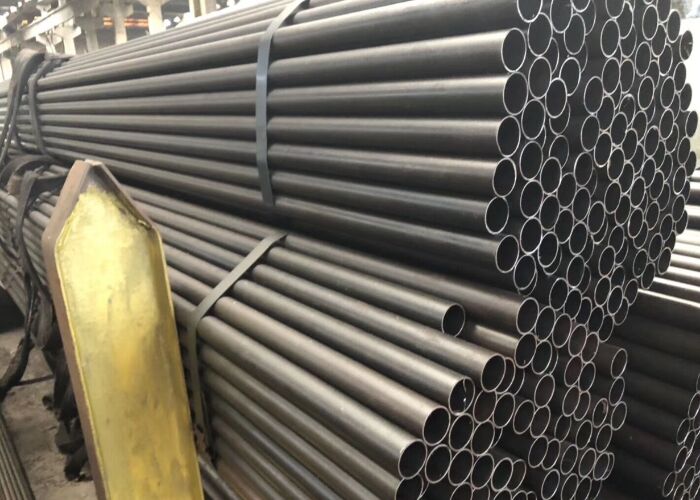

ASTM A513 1008 ERW Carbon Pipe and Alloy Steel Mechanical Tubing
Description
ASTM A513 Grade 1008 is a very low-carbon steel electric resistance welded (ERW) mechanical tubing known for excellent formability, ductility, and surface quality, commonly used for structural parts, furniture, automotive components, and frames where bending, flaring, or flattening is needed, available in hot-rolled or pickled & oiled finishes, providing specific tolerances for OD, wall thickness, and straightness.
| American Standard | Standard Name |
| A513 / A513M | Standard Specification for Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing |
ASTM A513 1008 ERW Steel Pipe Chemical Composition
Sources American Standard A513 / A513M TABLE 1 Chemical Requirements for Standard Low-Carbon Steels
| Grade Designation | Chemical Composition Limits, % | ||||||
| Carbon | Manganese | Phosphorus, max |
Sulfur, max |
Nickel | Chromium | Molybdenum | |
| MT1010 | 0.02-0.15 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| MT1015 | 0.10-0.20 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| MT X1015 | 0.10-0.20 | 0.60-0.90 | 0.035 | 0.035 | - | - | - |
| MT1020 | 0.15-0.25 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| MT X1020 | 0.15-0.25 | 0.70-1.00 | 0.035 | 0.035 | - | - | - |
| 1006 | 0.08 max | 0.45 max | 0.030 | 0.035 | - | - | - |
| 1008 | 0.10 max | 0.5 max | 0.035 | 0.035 | - | - | - |
| 1009 | 0.15 max | 0.6 max | 0.035 | 0.035 | - | - | - |
| 1010 | 0.08-0.13 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| 1012 | 0.10-0.15 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| 1015 | 0.13-0.18 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| 1016 | 0.13-0.18 | 0.60-0.90 | 0.035 | 0.035 | - | - | - |
| 1017 | 0.15-0.20 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| 1018 | 0.15-0.20 | 0.60-0.90 | 0.035 | 0.035 | - | - | - |
| 1019 | 0.15-0.20 | 0.70-1.00 | 0.035 | 0.035 | - | - | - |
| 1020 | 0.18-0.23 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| 1021 | 0.18-0.23 | 0.60-0.90 | 0.035 | 0.035 | - | - | - |
| 1022 | 0.18-0.23 | 0.70-1.00 | 0.035 | 0.035 | - | - | - |
| 1023 | 0.20-0.25 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| 1024 | 0.18-0.25 | 1.30-1.65 | 0.035 | 0.035 | - | - | - |
| 1025 | 0.22-0.28 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| 1026 | 0.22-0.28 | 0.60-0.90 | 0.035 | 0.035 | - | - | - |
| 1027 | 0.22-0.29 | 1.20-1.55 | 0.035 | 0.035 | - | - | - |
| 1030 | 0.28-0..34 | 0.60-0.90 | 0.035 | 0.035 | - | - | - |
| 1033 | 0.30-0.36 | 0.70-1.00 | 0.035 | 0.035 | - | - | - |
| 1035 | 0.32-0.38 | 0.60-0.90 | 0.035 | 0.035 | - | - | - |
| 1040 | 0.37-0.44 | 0.60-0.90 | 0.040 | 0.050 | - | - | - |
| 1050 | 0.48-0.55 | 0.60-0.90 | 0.040 | 0.050 | - | - | - |
| 1060 | 0.55-0.65 | 0.60-0.90 | 0.040 | 0.050 | - | - | - |
| 1340 | 0.38-0.43 | 1.60-1.90 | 0.035 | 0.040 | 0.15-0.35 | - | - |
| 1524 | 0.19-0.25 | 1.35-1.65 | 0.040 | 0.050 | - | - | - |
| 4118 | 0.18-0.23 | 0.70-0.90 | 0.035 | 0.040 | 0.15-0.35 | 0.40-0.60 | 0.8-0.15 |
| 4130 | 0.28-0.33 | 0.40-0.60 | 0.035 | 0.040 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
| 4140 | 0.38-0.43 | 0.75-1.0 | 0.035 | 0.040 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
| 5130 | 0.28-0.33 | 0.70-0.90 | 0.035 | 0.040 | 0.15-0.35 | 0.80-1.10 | - |
| 8620 | 0.18-0.23 | 0.70-0.90 | 0.035 | 0.040 | 0.15-0.35 | 0.40-0.70 | 0.15-0.25 |
| 8630 | 0.28-0.33 | 0.70-0.90 | 0.035 | 0.040 | 0.15-0.35 | 0.40-0.70 | 0.15-0.25 |
ASTM A513 1008 ERW Steel Pipe Mechanical Properties
Sources American Standard A513 / A513M TABLE S5.1 Mechanical Properties for Round Tubing
| A513 Round Tubing | Yield Strength, Ksi (MPa), min | Ultimate Strength, ksi (MPa), min | Elongation in 2 in. or 50 mm. % min | RB min | RB max |
| As-Welded Tubing | |||||
| 1008 | 30 (205) | 42 (290) | 15 | 50 | |
| 1010 | 32 (220) | 45 (310) | 15 | 55 | |
| 1015 | 35 (240) | 48 (330) | 15 | 58 | |
| 1020 | 38 (260) | 52 (360) | 12 | 62 | |
| 1026 | 45 (310) | 62 (425) | 12 | 68 | |
| 4130 | 55 (380) | 72 (495) | 10 | 80 | |
| 4140 | 70 (485) | 90 (620) | 10 | 85 | |
| ... | |||||
| Normalized Tubing | |||||
| 1008 | 23 (160) | 38 (260) | 30 | 65 | |
| 1010 | 25 (170) | 40 (275) | 30 | 65 | |
| 1015 | 30 (205) | 45 (310) | 30 | 70 | |
| 1020 | 35 (240) | 50 (345) | 25 | 75 | |
| 1026 | 40 (275) | 60 (414) | 25 | 85 | |
| 4130 | 50 (345) | 70 (480) | 20 | 100 | |
| 4140 | 65 (450) | 90 (620) | 20 | 105 | |
| ... | |||||
| Sink-Drawn Tubing | |||||
| 1008 | 38 (260) | 48 (330) | 8 | 65 | |
| 1010 | 40 (275) | 50 (345) | 8 | 65 | |
| 1015 | 45 (310) | 55 (380) | 8 | 67 | |
| 1020 | 50 (345) | 60 (415) | 8 | 70 | |
| 1026 | 55 (380) | 70 (480) | 7 | 77 | |
| ... | |||||
| DOM Tubing | |||||
| 1008 | 50 (345) | 60 (415) | 5 | 73 | |
| 1010 | 50 (345) | 60 (415) | 5 | 73 | |
| 1015 | 55 (380) | 65 (450) | 5 | 77 | |
| 1020 | 60 (415) | 70 (480) | 5 | 80 | |
| 1026 | 70 (480) | 80 (550) | 5 | 85 | |
| 4130 | 85 (585) | 95 (655) | 5 | 90 | |
| 4140 | 100 (690) | 110 (760) | 5 | 90 | |
| ... | |||||
| DOM Stress-Relieved Tubing | |||||
| 1008 | 45 (310) | 55 (380) | 12 | 68 | |
| 1010 | 45 (310) | 55 (380) | 12 | 68 | |
| 1015 | 50 (345) | 60 (415) | 12 | 72 | |
| 1020 | 55 (380) | 65 (450) | 10 | 75 | |
| 1026 | 65 (450) | 75 (515) | 10 | 80 | |
| 4130 | 80 (550) | 90 (620) | 10 | 87 | |
| 4140 | 95 (655) | 105 (725) | 10 | 90 | |
| ... | |||||
ASTM A513 1008 ERW Steel Pipe Manufacturing Proces
ASTM A513 1008 ERW Steel Pipe Application
ASTM A513 1008 ERW Steel Pipe Packing & Loading
a. 1/2"-2"Plain end with black oil paint, caps both ends, bundles with loading belt.
b. 2"-4"Beveled end with black oil paint, caps both ends, bundles with loading belt.
c. 10"-20"Beveled end with black oil paint, caps both ends, loose packed in to container.
→ ASTM A513 1008 ERW Steel Pipe is transported in containers
