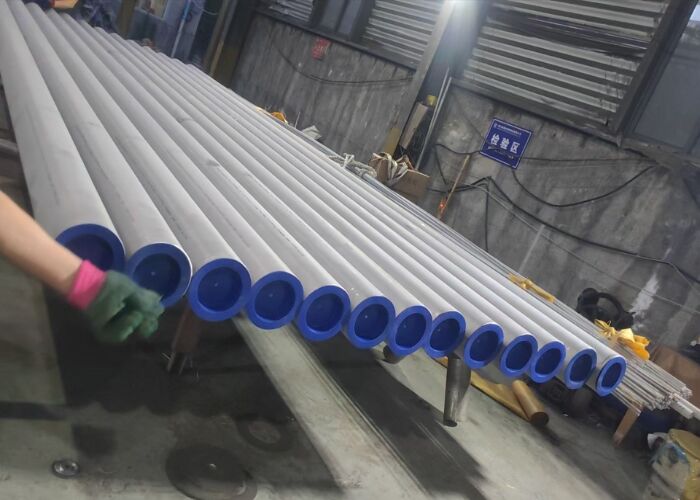

ASTM A790 UNS S32550 Stainless Steel Tube For Power Generation
Specifications
ASTM A790 covers seamless and straight-seam welded ferritic/austenitic stainless steel pipe intended for general-purpose applications.
ASTM A790 UNS S32550 is a grade of duplex stainless steel. As the name suggests, duplex steels are a group of metals with two different microstructures: austenite and ferrite. Because of this unique combination, they have better mechanical properties, which makes them suitable for harsh environments, especially in offshore oil and gas, chemical processing, petrochemicals, and marine uses.
| American Standard | Standard Name |
| A 790 / SA 790 | Seamless and Welded Ferritic/Austenitic Stainless Steel Pipe |
ASTM A790 UNS S32550 Stainless Steel Tube Chemical Composition
(Sources American Standard A790 / A790M TABLE 2 Chemical Requirements)
| UNS Designation A | Type | C | Mn | P | S | Si | Ni | Cr | Mo | N | Cu |
| S32550 | 255 | 0.04 | 1.5 | 0.04 | 0.03 | 1 | 4.5–6.5 | 24.0–27.0 | 2.9–3.9 | 0.10–0.25 | 1.5-2.50 |
ASTM A790 UNS S32550 Stainless Steel Tube Mechanical Properties
(Sources American Standard A790 / A790M TABLE 3 Tensile and Hardness Requirements)
| UNS Designation | Type | Tensile strength, | Yield strength, | Elongation | Hardness, max | |
| min, | min | in 2 in. or 50 | ||||
| ksi[MPa] | ksi[MPa] | mm, min,% | HNW | HRC | ||
| S32550 | 255 | 110 [760] | 80 [550] | 15 | 297 | 31 |
ASTM A790 UNS S32550 Stainless Steel Tube Application
ASTM A790 UNS S32520 Stainless Steel Tube Packing & Loading
