| Brand Name: | Jinxi Pipe |
| Model Number: | Fin Tube |
| MOQ: | 1 |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 1000000 |

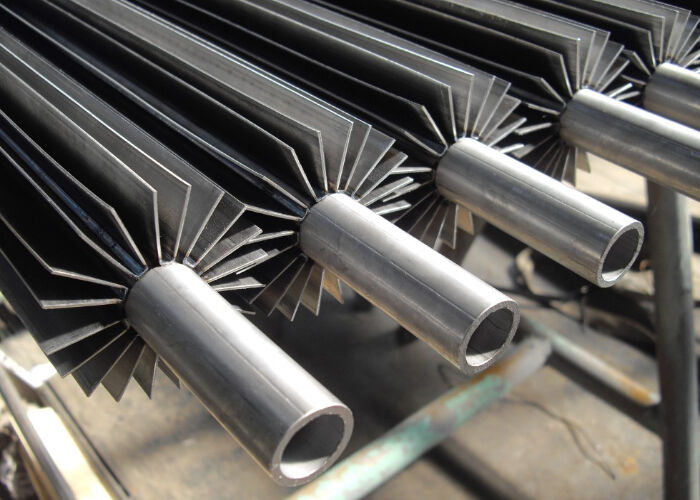

Product Name:Longitudinal Finned Tubes,High Frequency Welded(HFW) Fin Tube,L Foot Fin Tube,KL Type Fin Tube,LL Fin Tube,Crimped Type Fin Tube,Integral Low Fin Tube,Bimetal Extruded Fin tube,Stud Fin Tube,G Fin Tube,Laser Welded Fin Tube
Base Pipe OD: 15.88-273mm
Fin Height: 4.0-50mm
Fin Thickness: 0.3 -1.5mm
Number of Fins: Depending on the tube OD
Fin Pitch:as customer's request.
End: Plain Ends, Beveled Ends
Base Tube Material: Stainless steel, carbon steel, copper alloy,alloy steel (No theoretical limit)
Fin material: Aluminium,copper. Stainless steel L Type fins tube, carbon steel L Type fins tube copper L Type fins tube
Cu-Ni L fins tube,Aluminium brass L fins tube Copper-nickel L Type fins tube Duplex L Type fins tube super duplex L type fins tube Air cooler fins tube, air preheater fins tube.
Extruded fins tube Serrated fin tubes L Type fins tube G Type fins tube LL Type fins tube H Type fins tube KL Type fins tube HFW fin tube laser welded fin tube.
Packaging: Steel frame wooden box.
Fin tube Chinese manufacturer

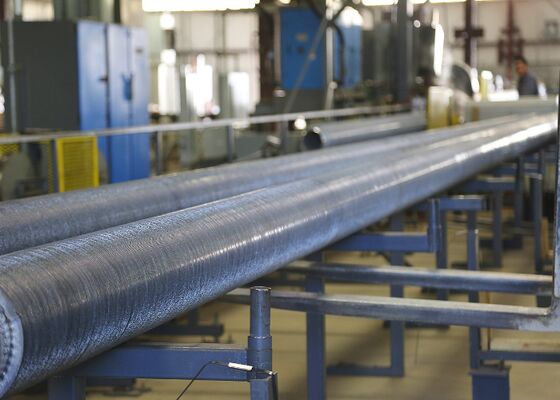

Production workshop
| Type | Description | Base tube | Fin specification (mm) | ||
| O.D. (mm) | Fin pitch | Fin height | Fin thick | ||
| Embedded | G-type fin tube | 16-63 | 2.1-5 | <17 | ~0.4 |
| Extruded | Single metal combined metal | 8-51 | 1.6-10 | <17 | 0.2-0.4 |
| Low fin tube t-type fin tube | 10-38 | 0.6-2 | <1.6 | ~0.3 | |
| Bamboo tube corrugated tube | 16-51 | 8-30 | <2.5 | / | |
| Wound | l/kl/ll type fin tube | 16-63 | 2.1-5 | <17 | ~0.4 |
| String | String fin tube | 25-38 | 2.1-3.5 | <20 | 0.2-0.5 |
| U-type | U-type tube | 16-38 | / | / | / |
| Welding | HF-welding fin tube | 16-219 | 3-25 | 5-30 | 0.8-3 |
| H/HH type fin tube | 25-63 | 8-30 | <200 | 1.5-3.5 | |
| Studed fin tube | 25-219 | 8-30 | 5-35 | φ5-20 | |
| Fin material | No. Fins per meter | Strip thickness | Fin Height (mm) |
| Carbon Steel ,Alloy Steel ,Stainless Steel | From 50 to 500 | From 0,3mm. to 1.5mm. | 4 mm ~50 mm |
| Tube material | Tube thickness | O.D. tube | Lenght available |
| Carbon Steel ,Alloy Steel ,Stainless Steel | 1mm. minimum | From 15.88mm. to 273mm. | ≤ 15Mtrs |
Production Process of Finned Steel Tube
Packing & Loading of Fin Tube
Bundling → Internal waterproof film → Steel frame wooden box
Fin tubes and accessories
Fin tube steel wooden frame packaging
Fin tube transported in containers
