| Brand Name: | Jinxi Pipe |
| Model Number: | Tubing Pipe |
| MOQ: | 1 |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 1000000 |

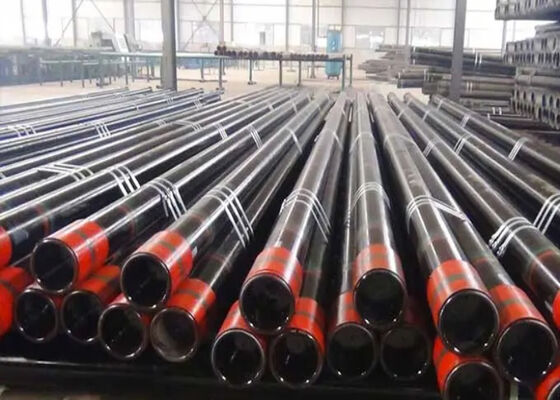

Product Type: API Tubing,EUE Seamless Tubing；NU Seamless Tubing；Premium Tubing, Tubing Pipe, Oil Tubing, API Tubing Well Tubing, Tubing.
Outer Diameter (OD): 48.26mm-114.30mm
Wall Thickness(WT): 3.18mm-16mm
Length: R1, R2, R3
Standard: API 5CT PSL1/PSL2 J55,K55,N80-1,N80-Q,API 5CT PSL1/PSL2 L80-1,
L80-9Cr,L80-13Cr,C90, C95, P110, Q125
Materials: H40, J55, K55, N80, L80, C90,T95 and P110
Thread type: NUE.EUE,BAM,Special clearance,VAN TOP,NEW VAM
Application: Oil Tubing is widely used for transporting crude oil and natural gas to surface after drilling, which also bears pressure from exploration.
Tubing Pipe is the conduit through which oil and gas are brought from the producing formations to the field surface facilities for processing. Tubing must be adequately strong to resist loads and deformations associated with production and workovers. Further, tubing must be sized to support the expected rates of production of oil and gas. Clearly, tubing that is too small restricts production and subsequent economic performance of the well. Tubing that is too large, however, may have an economic impact beyond the cost of the tubing string itself, because the tubing size will influence the overall casing design of the well.
Specification & Size of OCTG Steel Pipe(API Tubing Pipe Size Chart)
| API 5CT Oil Tubing Dimension: | ||||||||||||
| Label | OD (mm) |
WT (mm) | Type of End-finish | |||||||||
| Inch | NU T&C | EU T&C | IJ | H40 | J55 | L80 | N80 | C90 | T95 | P110 | ||
| 1.9 | 2.75 | 2.9 | 2.76 | 48.26 | 3.68 | PNUI | PNUI | PNUI | PNUI | PNUI | PNUI | - |
| 1.9 | 3.65 | 3.73 | - | 48.26 | 5.08 | PU | PU | PU | PU | PU | PU | PU |
| 1.9 | 4.42 | - | - | 48.26 | 6.35 | - | - | P | - | P | P | - |
| 2 3/8 | 4 | - | - | 60.32 | 4.24 | PU | PN | PN | PN | PN | PN | - |
| 2 3/8 | 4.6 | 4.7 | - | 60.32 | 4.83 | PNU | PNU | PNU | PNU | PNU | PNU | PNU |
| 2 3/8 | 5.8 | 5.95 | - | 60.32 | 6.45 | - | - | PNU | PNU | PNU | PNU | PNU |
| 2 3/8 | 6.6 | - | - | 60.32 | 7.49 | - | - | P | - | P | P | - |
| 2 3/8 | 7.35 | 7.45 | - | 60.32 | 8.53 | - | - | PU | - | PU | PU | - |
| 2 7/8 | 6.4 | 6.5 | - | 73.02 | 5.51 | PNU | PNU | PNU | PNU | PNU | PNU | PNU |
| 2 7/8 | 7.8 | 7.9 | - | 73.02 | 7.01 | - | - | PNU | PNU | PNU | PNU | PNU |
| 2 7/8 | 8.6 | 8.7 | - | 73.02 | 7.82 | - | - | PNU | PNU | PNU | PNU | PNU |
| 2 7/8 | 9.35 | 9.45 | - | 73.02 | 8.64 | - | - | PU | - | PU | PU | - |
| 2 7/8 | 10.5 | - | - | 73.02 | 9.96 | - | - | P | - | P | P | - |
| 3 1/2 | 7.7 | - | - | 88.9 | 5.49 | PN | PN | PN | PN | PN | PN | - |
| 3 1/2 | 9.2 | 9.3 | - | 88.9 | 6.45 | PNU | PNU | PNU | PNU | PNU | PNU | PNU |
| 3 1/2 | 10.2 | - | - | 88.9 | 7.34 | PN | PN | PN | PN | PN | PN | - |
| 3 1/2 | 12.7 | 12.95 | - | 88.9 | 9.52 | - | - | PNU | PNU | PNU | PNU | PNU |
| 3 1/2 | 14.3 | - | - | 88.9 | 10.92 | - | - | P | - | P | P | - |
| 3 1/2 | 15.5 | - | - | 88.9 | 12.09 | - | - | P | - | P | P | - |
| 4 | 9.5 | - | - | 101.6 | 5.74 | PN | PN | PN | PN | PN | PN | - |
| 4 | 10.7 | 11 | - | 101.6 | 6.65 | PU | PU | PU | PU | PU | PU | - |
| 4 | 13.2 | - | - | 101.6 | 8.38 | - | - | P | - | P | P | - |
| 4 | 16.1 | - | - | 101.6 | 10.54 | - | - | P | - | P | P | - |
| 4 1/2 | 12.6 | 12.75 | - | 114.3 | 6.88 | PNU | PNU | PNU | PNU | PNU | PNU | - |
| 4 1/2 | 15.2 | - | - | 114.3 | 8.56 | - | - | P | - | P | P | - |
| P-Plain end; N-Non Upset;U-External upset;T&C-Threaded and coupled | ||||||||||||
Length of OCTG Tubing pipe
| Oil Tubing | Range 1 | Range 2 | Range 3 |
| 6.10~7.32 M | 8.53~9.75 M | 11.58~12.80 M |
Chemical Composition of OCTG Tubing pipe
| Group | Steel | Type | C | Mn | Mo | Cr | Ni | Cu | P | S | Si | ||||
| Grade | min. | max. | min. | max. | min. | max. | min. | max. | min. | max. | max. | max. | max. | ||
| 1 | H40 | – | – | – | – | – | – | – | – | – | – | – | 0.03 | 0.03 | – |
| J55 | – | – | – | – | – | – | – | – | – | – | – | 0.03 | 0.03 | – | |
| K55 | – | – | – | – | – | – | – | – | – | – | – | 0.03 | 0.03 | – | |
| N80 | 1 | – | – | – | – | – | – | – | – | – | – | 0.03 | 0.03 | – | |
| Q | – | – | – | – | – | – | – | – | – | – | 0.03 | 0.03 | – | ||
| 2 | M65 | – | – | – | – | – | – | – | – | – | – | – | 0.03 | 0.03 | – |
| L80 | 1 | – | 0.43 | – | 1.9 | – | – | – | – | 0.25 | 0.35 | 0.03 | 0.03 | 0.5 | |
| 9Cr | – | 0.15 | 0.3 | 0.6 | 0.9 | 1.1 | 8 | 10 | 0.5 | 0.25 | 0.02 | 0.01 | 1 | ||
| 13Cr | 0.15 | 0.22 | 0.25 | 1 | – | – | 12 | 14 | 0.5 | 0.25 | 0.02 | 0.01 | 1 | ||
| C90 | 1 | – | 0.35 | – | 1.2 | 0.25 | 0.85 | – | 1.5 | 0.99 | – | 0.02 | 0.01 | – | |
| 2 | – | 0.5 | – | 1.9 | – | NL | – | NL | 0.99 | – | 0.03 | 0.01 | – | ||
| C95 | – | – | 0.45 | – | 1.9 | – | – | – | – | – | – | 0.03 | 0.03 | 0.5 | |
| T95 | 1 | – | 0.35 | – | 1.2 | 0.25 | 0.85 | 0.4 | 1.5 | 0.99 | – | 0.02 | 0.01 | – | |
| 2 | – | 0.5 | – | 1.9 | – | – | – | – | 0.99 | – | 0.03 | 0.01 | – | ||
| 3 | P110 | – | – | – | – | – | – | – | – | – | – | – | 0.03 | 0.03 | – |
| 4 | Q125 | 1 | – | 0.35 | – | 1.35 | – | 0.85 | – | 1.5 | 0.99 | – | 0.02 | 0.01 | – |
| 2 | – | 0.35 | – | 1 | – | NL | – | NL | 0.99 | – | 0.02 | 0.02 | – | ||
| 3 | – | 0.5 | – | 1.9 | – | NL | – | NL | 0.99 | – | 0.03 | 0.01 | – | ||
| 4 | – | 0.5 | – | 1.9 | – | NL | – | NL | 0.99 | – | 0.03 | 0.02 | – | ||
| a. The carbon content for L80 may be increased up to 0, 50 % maximum if the product is oil-quenched. | |||||||||||||||
| b. The molybdenum content for Grade C90 Type 1 has no minimum tolerance if the WT is less than 17, 78 mm. | |||||||||||||||
| c. The carbon content for R95 may be increased up to 0, 55 % maximum if the product is oil-quenched. | |||||||||||||||
| d. The molybdenum content for T95 Type 1 may be decreased to 0, 15 % minimum if the WT is less than 17, 78 mm. | |||||||||||||||
| e. For EW Grade P110, the phosphorus content shall be 0,020 % maximum and the sulfur content 0,010 % maximum | |||||||||||||||
| NL = no limit. Elements shown shall be reported in product analysis. | |||||||||||||||
Mechanical Properties of OCTG Tubing pipe
| Tensile and Hardness Requirements | |||||||||
| Grade | Type | Total Elongation Under Load | Yield strength MPa | Tensile strength MPa | Hardness a,c max | Specified Wall Thickness | Allowable Hardness Variation b | ||
| min | max | min | HRC | HBW | mm | HRC | |||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| H40 | – | 0.5 | 276 | 552 | 414 | – | – | – | |
| J55 | – | 0.5 | 379 | 552 | 517 | – | – | – | |
| K55 | – | 0.5 | 379 | 552 | 655 | – | – | – | |
| N80 | 1 | 0.5 | 552 | 758 | 689 | – | – | – | |
| N80 | Q | 0.5 | 552 | 758 | 689 | – | – | – | |
| R95 | – | 0.5 | 655 | 758 | 724 | – | – | – | |
| L80 | 1 | 0.5 | 552 | 655 | 655 | 23 | 241 | – | |
| L80 | 9Cr | 0.5 | 552 | 655 | 655 | 23 | 241 | – | |
| L80 | 13Cr | 0.5 | 552 | 655 | 655 | 23 | 241 | – | |
| C90 | 1 | 0.5 | 621 | 724 | 689 | 25.4 | 255 | ≤12.70 12.71 to 19.04 19.05 to 25.39 ≥25.40 | 3.0 4.0 5.0 6.0 |
| T95 | 1 | 0.5 | 655 | 758 | 724 | 25.4 | 255 | ≤12.70 12.71 to 19.04 19.05 to 25.39 ≥25.40 | 3.0 4.0 5.0 6.0 |
| C110 | – | 0.7 | 758 | 828 | 793 | 30 | 286 | ≤12.70 12.71 to 19.04 19.05 to 25.39 ≥25.40 | 3.0 4.0 5.0 6.0 |
| P110 | – | 0.6 | 758 | 965 | 862 | – | – | – | – |
| Q125 | 1 | 0.65 | 862 | 1034 | 931 | b | – | ≤12.70 12.71 to 19.04 19.05 | 3.0 4.0 5.0 |
| a In case of dispute, laboratory Rockwell C hardness testing shall be used as the referee method. b No hardness limits, but the maximum variation is restricted as a manufacturing control in accordance with 7.8 and 7.9. c For through-wall hardness tests of Grades L80(all types), C90, T98 and C110, the requirements stated in HRC scale are for maximum mean hardness number. | |||||||||
Tubing Pipe Manufacturing Process
Color Codes for API 5CT Casing and Tubing

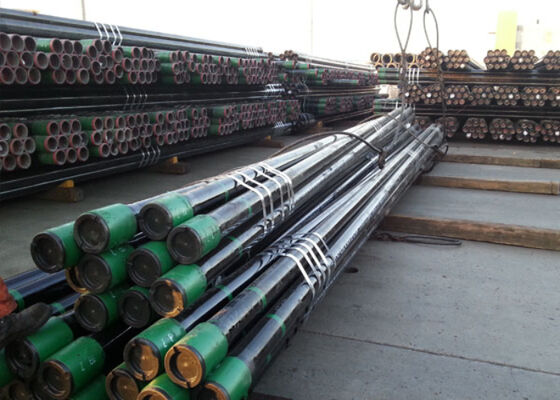

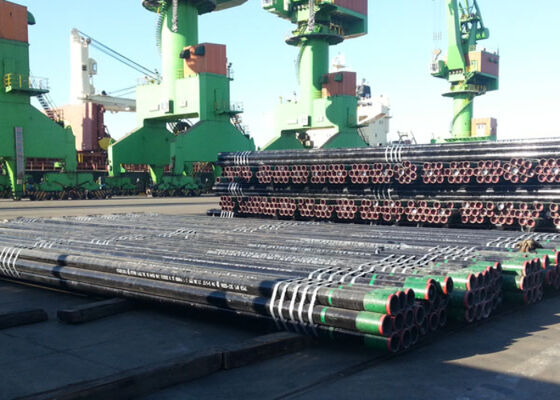

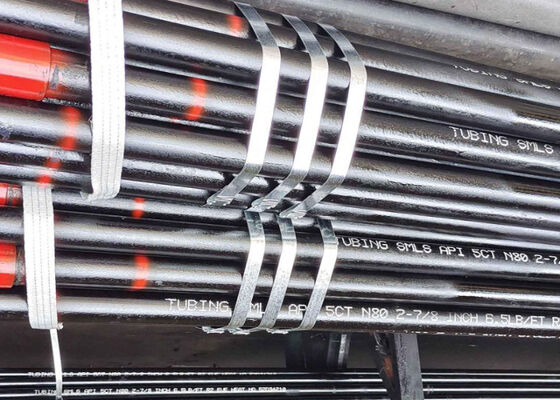

Packing & Loading
Tubing pipe is transported in containers
