| Brand Name: | Jinxi Pipe |
| Model Number: | Seamless steel Pipe |
| MOQ: | 1 |
| Price: | 1500 USD/TON |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 10000000 |

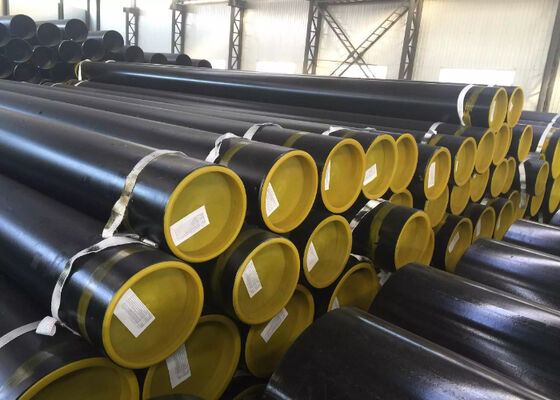

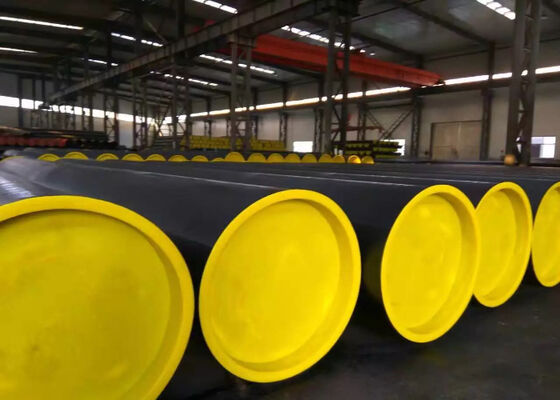

28 Inch Large Diameter Seamless Steel Pipe Thick-walled SGS Certified for Line Pipe
ASTM A106/ASME SA106 is the standard specification for seamless carbon steel pipe used for high-temperature services. It includes three grades: A, B, and C, with Grade B being commonly used. This type of pipe finds applications in various industries, including pipeline systems for oil and gas, water, and mineral slurry transmission. It is also used in boiler systems and for construction and structural purposes.
| Grade | Grade A | Grade B | Grade C |
|---|---|---|---|
| Carbon (C) Mx. | 0.25 | 0.3 | 0.35 |
| Manganese (Mn) | 0.27-0.93 | 0.29-1.06 | 0.29-1.06 |
| Phosphorus (P) Mx. | 0.035 | 0.035 | 0.035 |
| Sulfur (S) Mx. | 0.035 | 0.035 | 0.035 |
| Silicon (Si) Mx. | 0.1 | 0.1 | 0.1 |
| Chromium (Cr) Mx. | 0.4 | 0.4 | 0.4 |
| Copper (Cu) Mx. | 0.4 | 0.4 | 0.4 |
| Molybdenum (Mo) Mx. | 0.15 | 0.15 | 0.15 |
| Nickel (Ni) Mx. | 0.4 | 0.4 | 0.4 |
| Vanadium (V) Mx. | 0.08 | 0.08 | 0.08 |
| Grade | Tensile Strength (Mpa), Min. | Yield Strength (Mpa), Min. |
|---|---|---|
| A | 330 | 205 |
| B | 415 | 240 |
| C | 485 | 275 |
| Types | Application |
|---|---|
| Structure Purposes | General structure and mechanical |
| Liquid Services | Petroleum, gas and other fluids conveying |
| Low and Medium Pressure Boiler Tube | Steam and boiler manufacturing |
| Hydraulic Pillar Service | Hydraulic support |
| Auto Semi-shaft Casing | Auto sem-shaft casing |
| Line Pipe | Oil and gas conveying |
| Tubing and Casing | Oil and gas conveying |
| Drill Pipes | Well drilling |
| Geological Drilling Pipe | Geological drilling |
| Furnace tubes, heat exchangers tubes | Furnace tubes, heat exchangers |
