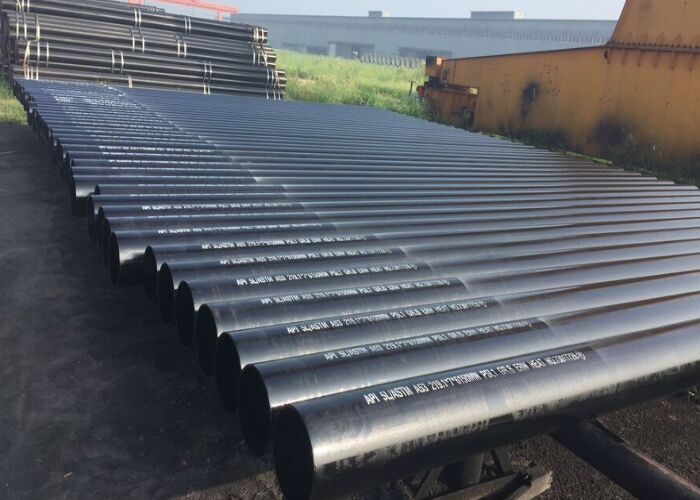

ASTM A53 SCH 40 Seamless Steel Pipe with Beveled Ends and API Certified

ASTM A53 Type S Pipe Carbon Steel Pipe SCH 40

Description

ASTM A53 Seamless Pipe is a carbon steel pipe manufactured without a welded seam in accordance with ASTM A53/A53M, one of the most widely used standards for general service piping. This seamless pipe (Type S) provides superior strength, uniform wall thickness, and eliminates longitudinal weld seam failure points, making it a reliable choice for mechanical, pressure, and structural applications.

ASTM A53 Type S Pipe Chemical Composition

Sources American Standard A53 / A53M TABLE 1 Chemical Requirements

ASTM A53 Type S Pipe Mechanical Properties

Sources American Standard A53 / A53M TABLE 2 Tensile Requirements

ASTM A53 Type S Pipe Application

• Utility Piping: Water, steam, gas, and air lines
• Pressure & Mechanical Systems: Low to medium-pressure applications
• Structural Use: Scaffolding, building supports, and mechanical components
• Fire Protection: Fire sprinkler systems (galvanized)
• Oil & Gas: Low to medium-pressure gathering and distribution lines

ASTM A53 Type S Pipe Manufacturing Process

The process begins with solid steel rounds, or billets, being cut to a specified length and sent through a walking-beam reheat furnace, where temperatures reach nearly 2,300°F. After exiting the reheat furnace, the preheated rounds are turned into a tube shell in the rotary piercing mill as the billets are cross-rolled between two barrel-shaped rolls at a high speed.

The seamless shells enter mandrel mill, where they are rolled over a retained mandrel to provide the needed OD size and wall thickness for the next process. The process is carefully monitored using a state-of-the-art hot-wall measuring system. The shells are then reheated for final forming in a 24-stand stretch-reducing mill, where outside diameters are formed to customers’ exacting specifications. Wall thickness is again verified using a hot-wall measuring system. After being rotated and advanced on the walking-beam cooling bed, the pipes are batch cut and transferred to an in-process storage area, where they are handled by computer-controlled gantry cranes.

ASTM A53 Type S Pipe Packing & Loading

            a.  1/2"-2"Plain end with black oil paint, caps both ends, bundles with loading belt.

            b.  2"-4"Beveled end with black oil paint, caps both ends, bundles with loading belt.

            c.  10"-20"Beveled end with black oil paint, caps both ends, loose packed in to container.

ASTM A53 Type S Pipe Shipping

a.By container

b.By bulk
