API 5L ASTM A106 Grade B Carbon Steel Seamless Pipe for Oil and Gas Transmission with 1/2" to 40" OD

Carbon Steel Seamless Pipe For Oil and Gas

Description

Carbon steel seamless pipes are manufactured without any welded seam, offering superior strength, uniform structure, and reliable pressure resistance. they are designed to withstand high-pressure and high-temperature environments, making them the preferred choice for critical applications across multiple industries.

Carbon Steel Seamless Pipe Chemical Composition

Sources American Standard A106 / A106M Table 1 Chemical Requirements

Carbon Steel Seamless Pipe Mechanical Properties

Sources American Standard A106 / A106M Table 2 Tensile Requirements

Carbon Steel Seamless Pipe Application

• Oil & Gas Exploration and Production
• Oil & Gas Transmission Pipelines
• High-Temperature Process Piping
• Power Generation & Boiler Systems
• Chemical & Petrochemical Processing
• Refinery & Industrial Utility Piping
• Mechanical & Structural Applications
• Construction & Infrastructure
• Water & Fluid Conveyance Systems
• High-Pressure Hydraulic & Pneumatic Systems
• Heat Exchangers & Condensers

Carbon Steel Seamless Pipe Manufacturing Process

The process begins with solid steel rounds, or billets, being cut to a specified length and sent through a walking-beam reheat furnace, where temperatures reach nearly 2,300°F. After exiting the reheat furnace, the preheated rounds are turned into a tube shell in the rotary piercing mill as the billets are cross-rolled between two barrel-shaped rolls at a high speed.

The seamless shells enter mandrel mill, where they are rolled over a retained mandrel to provide the needed OD size and wall thickness for the next process. The process is carefully monitored using a state-of-the-art hot-wall measuring system. The shells are then reheated for final forming in a 24-stand stretch-reducing mill, where outside diameters are formed to customers’ exacting specifications. Wall thickness is again verified using a hot-wall measuring system. After being rotated and advanced on the walking-beam cooling bed, the pipes are batch cut and transferred to an in-process storage area, where they are handled by computer-controlled gantry cranes.

Carbon Steel Seamless Pipe Packing & Loading

            a.  1/2"-2"Plain end with black oil paint, caps both ends, bundles with loading belt.

            b.  2"-4"Beveled end with black oil paint, caps both ends, bundles with loading belt.

            c.  10"-20"Beveled end with black oil paint, caps both ends, loose packed in to container.

                       Beveled End                          Pipe Marking                                                Black Painting

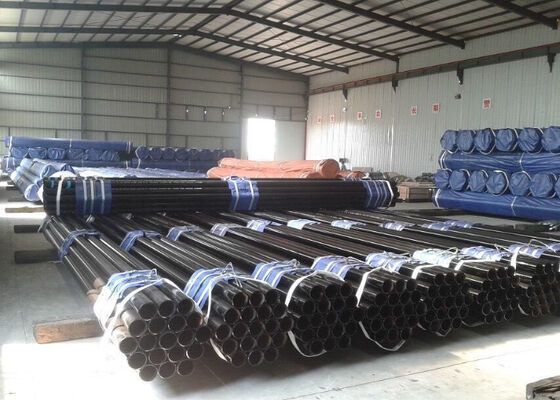

           Pipe end caps Protective                        Final inspection                                      Bundles Packing

Carbon Steel Seamless Pipe Shipping By Container
