| Brand Name: | Jinxi Pipe |
| Model Number: | Galvanied Steel Pipe |
| MOQ: | 1 |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 1000000 |
ASTM A106 Galvanized Seamless Steel Pipe For High-Temperature Service
Description
ASTM A106B Galvanized Seamless Pipe means that dip A106B pipes into hot liquid zinc to form a coating at both the outside and the inside of the pipe. The process is called hot dip galvanization. The zinc coating prevent pipes away form corrosion and rust
| American Standard | Standard Name |
| A106/A106M | Standard Specification for Seamless Carbon Steel Pipe for High-Temperature Service |
ASTM A106 Galvanized Steel Pipe Chemical Composition
Sources American Standard A106 / A106M Table 1 Chemical Requirements
| Grade | Chemical Composition | ||
| Grade A | Grade B | Grade C | |
| Carbon (C) Mx. | 0.25 | 0.3 | 0.35 |
| Manganese (Mn) | 0.27-0.93 | 0.29-1.06 | 0.29-1.06 |
| Phosphorus (P) Mx. | 0.035 | 0.035 | 0.035 |
| Sulfur (S) Mx. | 0.035 | 0.035 | 0.035 |
| Silicon (Si) Mx. | 0.1 | 0.1 | 0.1 |
| Chromium (Cr) Mx. | 0.4 | 0.4 | 0.4 |
| Copper (Cu) Mx. | 0.4 | 0.4 | 0.4 |
| Molybdenum (Mo) Mx. | 0.15 | 0.15 | 0.15 |
| Nickel (Ni) Mx. | 0.4 | 0.4 | 0.4 |
| Vanadium (V) Mx. | 0.08 | 0.08 | 0.08 |
ASTM A106 Galvanized Steel Pipe Mechanical Properties
Sources American Standard A106 / A106M Table 2 Tensile Requirements
| Grade | Tensile Strength (Mpa), Min. | Yield Strength (Mpa), Min. |
| A | 330 | 205 |
| B | 415 | 240 |
| C | 485 | 275 |
Difference between Hot-Dip Galvanizing and Pre-Galvanizing
| Feature | Hot Dip Galvanization | Pre-Galvanizing |
| Coating Thickness | Thick coating with minimum average requirements of 45-85μm within BS EN ISO 1461 | The coating thickness may vary, but it is typically circa 20μm for sheets and 20-30渭m for tubes |
| Coating Continually | Continuous coating over the whole object | The uncoated area at cut edges |
| Coating Bond | Strong metallurgical bond with the base steel | Strong metallurgical bond with the base steel |
| Coating Formability | Forming after hot dipped galvanizing is not advised as it may damage the coating | A thin coating may be normally formed without any damage |
| Coating Appearance | Normally bright, but can be variable | Normally bright |
| Abrasion Resistance | A thicker layer of hard zinc-iron alloy gives a high resistance to abrasion | Thin alloy layer with reduced resistance to abrasion |
| Sacrificial Protection | Offer the highest level of sacrificial protection | Reduced sacrificial protection due to thin layer coating and at some uncoated areas (cut edges) |
ASTM A106 Galvanized Steel Pipe Dimensions Sizes
| NOMINAL PIPE SIZE |
OD | NOMINAL WALL THICKNESS | |||||||||||||
| (mm) | |||||||||||||||
| DN | NB(inch) | ASME | SCH10 | SCH20 | SCH30 | STD | SCH40 | SCH60 | XS | SCH80 | SCH100 | SCH120 | SCH140 | SCH160 | XXS |
| 15 | 1/2" | 21.3 | 2.11 | 2.41 | 2.77 | 2.77 | 3.73 | 3.73 | 4.78 | 7.47 | |||||
| 20 | 3/4" | 26.7 | 2.11 | 2.41 | 2.87 | 2.87 | 3.91 | 3.91 | 5.56 | 7.82 | |||||
| 25 | 1" | 33.4 | 2.77 | 2.9 | 3.38 | 3.38 | 4.55 | 4.55 | 6.35 | 9.09 | |||||
| 32 | 1.1/4" | 42.2 | 2.77 | 2.97 | 3.56 | 3.56 | 4.85 | 4.85 | 6.35 | 9.7 | |||||
| 40 | 1.1/2" | 48.3 | 2.77 | 3.18 | 3.68 | 3.68 | 5.08 | 5.08 | 7.14 | 10.15 | |||||
| 50 | 2" | 60.3 | 2.77 | 3.18 | 3.91 | 3.91 | 5.54 | 5.54 | 8.74 | 11.07 | |||||
| 65 | 2.1/2" | 73 | 3.05 | 4.78 | 5.16 | 5.16 | 7.01 | 7.01 | 9.53 | 14.02 | |||||
| 80 | 3" | 88.9 | 3.05 | 4.78 | 5.49 | 5.49 | 7.62 | 7.62 | 11.13 | 15.25 | |||||
| 90 | 3.1/2" | 101.6 | 3.05 | 4.78 | 5.74 | 5.74 | 8.08 | 8.08 | |||||||
| 100 | 4" | 114.3 | 3.05 | 4.78 | 6.02 | 6.02 | 8.56 | 8.56 | 11.13 | 13.49 | 17.12 | ||||
| 125 | 5" | 141.3 | 3.4 | 6.55 | 6.55 | 9.53 | 9.53 | 12.7 | 15.88 | 19.05 | |||||
| 150 | 6" | 168.3 | 3.4 | 7.11 | 7.11 | 10.97 | 10.97 | 14.27 | 18.26 | 21.95 | |||||
| 200 | 8" | 219.1 | 3.76 | 6.35 | 7.04 | 8.18 | 8.18 | 10.31 | 12.7 | 12.7 | 15.09 | 18.26 | 20.62 | 23.01 | 22.23 |
| 250 | 10" | 273 | 4.19 | 6.35 | 7.8 | 9.27 | 9.27 | 12.7 | 12.7 | 15.09 | 18.26 | 21.44 | 25.4 | 28.58 | 25.4 |
| 300 | 12" | 323.8 | 4.57 | 6.35 | 8.38 | 9.53 | 10.31 | 14.27 | 12.7 | 17.48 | 21.44 | 25.4 | 28.58 | 33.32 | 25.4 |
| 350 | 14" | 355.6 | 6.35 | 7.92 | 9.53 | 9.53 | 11.13 | 15.09 | 12.7 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 | |
| 400 | 16" | 406.4 | 6.35 | 7.92 | 9.53 | 9.53 | 12.7 | 16.66 | 12.7 | 21.44 | 26.19 | 30.96 | 36.53 | 40.19 | |
| 450 | 18" | 457.2 | 6.35 | 7.92 | 11.13 | 9.53 | 14.27 | 19.05 | 12.7 | 23.83 | 39.36 | 34.93 | 39.67 | 45.24 | |
| 500 | 20" | 508 | 6.35 | 9.53 | 12.7 | 9.53 | 15.09 | 20.62 | 12.7 | 26.19 | 32.54 | 38.1 | 44.45 | 50.01 | |
| 550 | 22" | 558.8 | 6.35 | 9.53 | 12.7 | 9.53 | 22.23 | 12.7 | 28.58 | 34.93 | 41.28 | 47.63 | 53.98 | ||
| 600 | 24" | 609.6 | 6.35 | 9.53 | 14.27 | 9.53 | 17.48 | 24.61 | 12.7 | 30.96 | 38.89 | 46.02 | 52.37 | 59.54 | |
| 650 | 26" | 660.4 | 7.92 | 12.7 | 9.53 | 12.7 | |||||||||
| 700 | 28" | 711.2 | 7.92 | 12.7 | 15.88 | 9.53 | 12.7 | ||||||||
| 750 | 30" | 762 | 7.92 | 12.7 | 15.88 | 9.53 | 12.7 | ||||||||
| 800 | 32" | 812.8 | 7.92 | 12.7 | 15.88 | 9.53 | 17.48 | 12.7 | |||||||
| 850 | 34" | 863.6 | 7.92 | 12.7 | 15.88 | 9.53 | 17.48 | 12.7 | |||||||
| 900 | 36" | 914.4 | 7.92 | 12.7 | 15.88 | 9.53 | 19.05 | 12.7 | |||||||
ASTM A106 Galvanized Steel Pipe Application

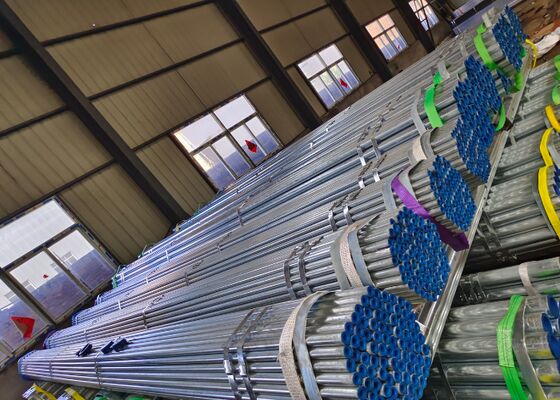

ASTM A106 Galvanized Steel Pipe Packing & Loading
a. 1/2"-2"Plain end with black oil paint, caps both ends, bundles with loading belt.
b. 2"-4"Beveled end with black oil paint, caps both ends, bundles with loading belt.
c. 10"-20"Beveled end with black oil paint, caps both ends, loose packed in to container.
ASTM A106 Galvanized Steel Pipe Shipment Reference
ASTM A106 Galvanized Steel Pipe is transported in containers
