| Brand Name: | Jinxi Pipe |
| Model Number: | Seamless steel Pipe |
| MOQ: | 1 |
| Price: | 1500 USD/TON |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 10000000 |

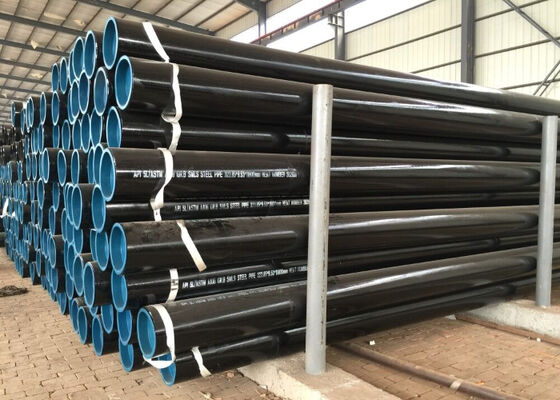

A seamless carbon steel pipe is a heavy-duty tube manufactured from a solid steel billet without any longitudinal weld seams. This unique structure provides uniform strength and superior ability to withstand high pressure and temperature compared to welded pipes.
| Grade | Grade A | Grade B | Grade C |
|---|---|---|---|
| Carbon (C) Mx. | 0.25 | 0.3 | 0.35 |
| Manganese (Mn) | 0.27-0.93 | 0.29-1.06 | 0.29-1.06 |
| Phosphorus (P) Mx. | 0.035 | 0.035 | 0.035 |
| Sulfur (S) Mx. | 0.035 | 0.035 | 0.035 |
| Silicon (Si) Mx. | 0.1 | 0.1 | 0.1 |
| Chromium (Cr) Mx. | 0.4 | 0.4 | 0.4 |
| Copper (Cu) Mx. | 0.4 | 0.4 | 0.4 |
| Molybdenum (Mo) Mx. | 0.15 | 0.15 | 0.15 |
| Nickel (Ni) Mx. | 0.4 | 0.4 | 0.4 |
| Vanadium (V) Mx. | 0.08 | 0.08 | 0.08 |
| Grade | Tensile Strength (Mpa), Min. | Yield Strength (Mpa), Min. |
|---|---|---|
| A | 330 | 205 |
| B | 415 | 240 |
| C | 485 | 275 |
| Types | Application |
|---|---|
| Structure Purposes | General structure and mechanical |
| Liquid Services | Petroleum, gas and other fluids conveying |
| Low and Medium Pressure Boiler Tube | Steam and boiler manufacturing |
| Hydraulic Pillar Service | Hydraulic support |
| Auto Semi-shaft Casing | Auto sem-shaft casing |
| Line Pipe | Oil and gas conveying |
| Tubing and Casing | Oil and gas conveying |
| Drill Pipes | Well drilling |
| Geological Drilling Pipe | Geological drilling |
| Furnace tubes, heat exchangers tubes | Furnace tubes, heat exchangers |
