| Brand Name: | Jinxi Pipe |
| Model Number: | Steel Pipe Fittings |
| MOQ: | 1 |
| Price: | 1-500 USD/PCS |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 1000000 |
ASME B16.9 Butt Weld Elbow 45° 90° 180°Long Radius & Short Radius
Specifications
The ASME B16.11 Socket Weld Fittings are forged steel fittings designed for small-diameter, high-pressure piping systems. Manufactured in accordance with ASME B16.11 dimensional standards, these fittings feature a recessed socket that accepts the pipe, which is then fillet welded at the outer rim, creating a smooth, flush bore and a strong, leak-proof connection.
Pipe Fitting Standards
| Pipe fitting standards | Description |
| ASTM A234 | Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service |
| ASTM A105 | Standard Specification for Carbon Steel Forgings for Piping Applications |
| ASTM 403 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
Pipe fitting Manufacturing Process
Socket Weld Fittings Applications

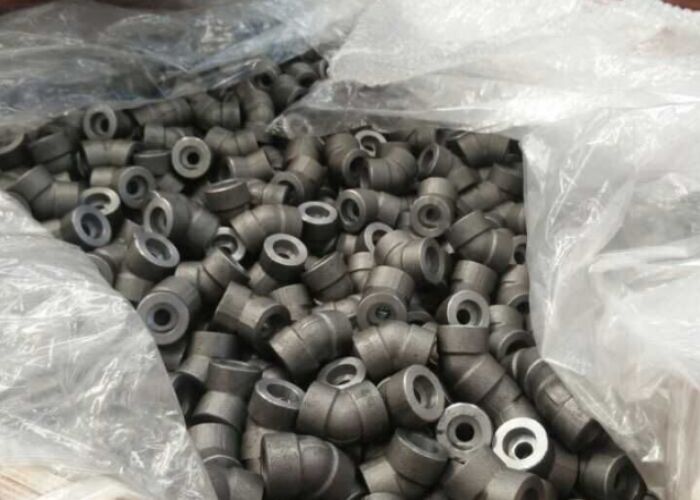

Socket Weld Fittings Packing & Loading
→A large number of pipe fittings are in stock in the warehouse
→Customized non-standard pipe fittings
→Pipe fittings transported in containers
