| Brand Name: | Jinxi Pipe |
| Model Number: | Steel Pipe Fittings |
| MOQ: | 1 |
| Price: | 1-500 USD/PCS |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 1000000 |
Carbon Steel ASTM A234 WPB for Butt Weld Fittings
Specifications
Carbon Steel Butt Weld Fittings are wrought carbon steel fittings designed for permanent, full-strength connections in high-pressure and high-temperature piping systems. Manufactured in accordance with ASME B16.9 dimensional standards, these fittings are butt-welded directly to pipe, providing smooth flow transitions, excellent structural integrity, and the ability to be radiographically inspected for quality assurance.
Pipe Fitting Standards
| Pipe fitting standards | Description |
| ASTM A234 | Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service |
| ASTM A105 | Standard Specification for Carbon Steel Forgings for Piping Applications |
| ASTM 403 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
Dimension of ASME B16.9
Dimensions of 90-deg Elbow
| Nominal Pipe Size (NPS) |
Outside Diameter at Bevel | Center-to-end | Center-to-end | Center-to-end |
| 90-deg LR Elbows, A | 90-deg SR Elbows, A | 90-deg 3D Elbows, A | ||
| 1⁄2 | 21.3 | 38 | 25 | |
| 3⁄4 | 26.7 | 38 | 32 | 57 |
| 1 | 33.4 | 38 | 38 | 76 |
| 11⁄4 | 42.2 | 48 | 51 | 95 |
| 11⁄2 | 48.3 | 57 | 64 | 114 |
| 2 | 60.3 | 76 | 76 | 152 |
| 21⁄2 | 73 | 95 | 89 | 190 |
| 3 | 88.9 | 114 | 102 | 229 |
| 31⁄2 | 101.6 | 133 | 127 | 267 |
| 4 | 114.3 | 152 | 152 | 305 |
| 5 | 141.3 | 190 | 203 | 381 |
| 6 | 168.3 | 229 | 254 | 457 |
| 8 | 219.1 | 305 | 305 | 610 |
| 10 | 273 | 381 | 356 | 762 |
| 12 | 323.8 | 457 | 406 | 914 |
| 14 | 355.6 | 533 | 457 | 1 067 |
| 16 | 406.4 | 610 | 508 | 1 219 |
| 18 | 457 | 686 | 559 | 1 372 |
| 20 | 508 | 762 | 610 | 1 524 |
| 22 | 559 | 838 | 1 676 | |
| 24 | 610 | 914 | 1 829 | |
| 26 | 660 | 991 | 1 981 | |
| 28 | 711 | 1 067 | 2 134 | |
| 30 | 762 | 1 143 | 2 286 | |
| 32 | 813 | 1 219 | 2 438 | |
| 34 | 864 | 1 295 | 2 591 | |
| 36 | 914 | 1 372 | 2 743 | |
| 38 | 965 | 1 448 | 2 896 | |
| 40 | 1 016.0 | 1 524 | 3 048 | |
| 42 | 1 067.0 | 1 600 | 3 200 | |
| 44 | 1 118.0 | 1 676 | 3 353 | |
| 46 | 1 168.0 | 1 753 | 3 505 | |
| 48 | 1 219.0 | 1 829 | 3 658 | |
| GENERAL NOTE: All dimensions are in millimeters. | ||||
Dimensions of 45-deg Elbow
| Nominal Pipe Size(NPS) | Outside Diameter at Bevel | Center-to-end | Center-to-end |
| 45-deg LR Elbows, B | 45-deg 3D Elbows, B | ||
| 1⁄2 | 21.3 | 16 | |
| 3⁄4 | 26.7 | 19 | 24 |
| 1 | 33.4 | 22 | 31 |
| 11⁄4 | 42.2 | 25 | 39 |
| 11⁄2 | 48.3 | 29 | 47 |
| 2 | 60.3 | 35 | 63 |
| 21⁄2 | 73 | 44 | 79 |
| 3 | 88.9 | 51 | 95 |
| 31⁄2 | 101.6 | 57 | 111 |
| 4 | 114.3 | 64 | 127 |
| 5 | 141.3 | 79 | 157 |
| 6 | 168.3 | 95 | 189 |
| 8 | 219.1 | 127 | 252 |
| 10 | 273 | 159 | 316 |
| 12 | 323.8 | 190 | 378 |
| 14 | 355.6 | 222 | 441 |
| 16 | 406.4 | 254 | 505 |
| 18 | 457 | 286 | 568 |
| 20 | 508 | 318 | 632 |
| 22 | 559 | 343 | 694 |
| 24 | 610 | 381 | 757 |
| 26 | 660 | 406 | 821 |
| 28 | 711 | 438 | 883 |
| 30 | 762 | 470 | 964 |
| 32 | 813 | 502 | 1 010 |
| 34 | 864 | 533 | 1 073 |
| 36 | 914 | 565 | 1 135 |
| 38 | 965 | 600 | 1 200 |
| 40 | 1 016.0 | 632 | 1 264 |
| 42 | 1 067.0 | 660 | 1 326 |
| 44 | 1 118.0 | 695 | 1 389 |
| 46 | 1 168.0 | 727 | 1 453 |
| 48 | 1 219.0 | 759 | 1 516 |
Pipe fitting Manufacturing Process
Carbon Steel Butt Weld Fittings Fittings Applications
ASTM A234 WPB Pipe Fittings Packing & Loading

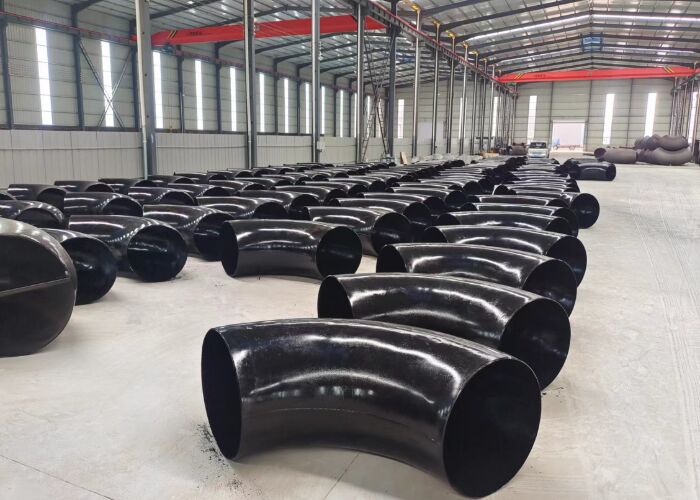

→A large number of pipe fittings are in stock in the warehouse
→Customized non-standard pipe fittings
→Pipe fittings transported in containers
