| Brand Name: | Jinxi Pipe |
| Model Number: | Alloy Steel Pipe |
| MOQ: | 1 |
| Price: | 1500 USD/TON |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 100000 |
ASTM A513 4140 Alloy Steel Pipe for High-Strength Machinery and Equipment
Description
ASTM A513 4140 steel pipe is an Electric Resistance Welded (ERW) alloy steel tube conforming to ASTM A513, using Grade 4140 (Chromoly) steel, known for high strength, toughness, and good wear resistance, suitable for demanding mechanical parts like automotive components, hydraulic cylinders, and structural elements requiring precision and durability, often available in various finishes and types (e.g., Type 1, Type 2, DOM).
| American Standard | Standard Name |
| A513 / A513M | Standard Specification for Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing |
ASTM A513 4140 Alloy Steel Pipe Chemical Composition
Sources American Standard A513 / A513M TABLE 1 Chemical Requirements for Standard Low-Carbon Steels
| Grade Designation | Chemical Composition Limits, % | ||||||
| Carbon | Manganese | Phosphorus, max |
Sulfur, max |
Nickel | Chromium | Molybdenum | |
| MT1010 | 0.02-0.15 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| MT1015 | 0.10-0.20 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| MT X1015 | 0.10-0.20 | 0.60-0.90 | 0.035 | 0.035 | - | - | - |
| MT1020 | 0.15-0.25 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| MT X1020 | 0.15-0.25 | 0.70-1.00 | 0.035 | 0.035 | - | - | - |
| 1006 | 0.08 max | 0.45 max | 0.030 | 0.035 | - | - | - |
| 1008 | 0.10 max | 0.5 max | 0.035 | 0.035 | - | - | - |
| 1009 | 0.15 max | 0.6 max | 0.035 | 0.035 | - | - | - |
| 1010 | 0.08-0.13 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| 1012 | 0.10-0.15 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| 1015 | 0.13-0.18 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| 1016 | 0.13-0.18 | 0.60-0.90 | 0.035 | 0.035 | - | - | - |
| 1017 | 0.15-0.20 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| 1018 | 0.15-0.20 | 0.60-0.90 | 0.035 | 0.035 | - | - | - |
| 1019 | 0.15-0.20 | 0.70-1.00 | 0.035 | 0.035 | - | - | - |
| 1020 | 0.18-0.23 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| 1021 | 0.18-0.23 | 0.60-0.90 | 0.035 | 0.035 | - | - | - |
| 1022 | 0.18-0.23 | 0.70-1.00 | 0.035 | 0.035 | - | - | - |
| 1023 | 0.20-0.25 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| 1024 | 0.18-0.25 | 1.30-1.65 | 0.035 | 0.035 | - | - | - |
| 1025 | 0.22-0.28 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| 1026 | 0.22-0.28 | 0.60-0.90 | 0.035 | 0.035 | - | - | - |
| 1027 | 0.22-0.29 | 1.20-1.55 | 0.035 | 0.035 | - | - | - |
| 1030 | 0.28-0..34 | 0.60-0.90 | 0.035 | 0.035 | - | - | - |
| 1033 | 0.30-0.36 | 0.70-1.00 | 0.035 | 0.035 | - | - | - |
| 1035 | 0.32-0.38 | 0.60-0.90 | 0.035 | 0.035 | - | - | - |
| 1040 | 0.37-0.44 | 0.60-0.90 | 0.040 | 0.050 | - | - | - |
| 1050 | 0.48-0.55 | 0.60-0.90 | 0.040 | 0.050 | - | - | - |
| 1060 | 0.55-0.65 | 0.60-0.90 | 0.040 | 0.050 | - | - | - |
| 1340 | 0.38-0.43 | 1.60-1.90 | 0.035 | 0.040 | 0.15-0.35 | - | - |
| 1524 | 0.19-0.25 | 1.35-1.65 | 0.040 | 0.050 | - | - | - |
| 4118 | 0.18-0.23 | 0.70-0.90 | 0.035 | 0.040 | 0.15-0.35 | 0.40-0.60 | 0.8-0.15 |
| 4130 | 0.28-0.33 | 0.40-0.60 | 0.035 | 0.040 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
| 4140 | 0.38-0.43 | 0.75-1.0 | 0.035 | 0.040 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
| 5130 | 0.28-0.33 | 0.70-0.90 | 0.035 | 0.040 | 0.15-0.35 | 0.80-1.10 | - |
| 8620 | 0.18-0.23 | 0.70-0.90 | 0.035 | 0.040 | 0.15-0.35 | 0.40-0.70 | 0.15-0.25 |
| 8630 | 0.28-0.33 | 0.70-0.90 | 0.035 | 0.040 | 0.15-0.35 | 0.40-0.70 | 0.15-0.25 |
ASTM A513 4140 Alloy Steel Pipe Mechanical Properties
Sources American Standard A513 / A513M TABLE S5.1 Mechanical Properties for Round Tubing
| A513 Round Tubing | Yield Strength, Ksi (MPa), min | Ultimate Strength, ksi (MPa), min | Elongation in 2 in. or 50 mm. % min | RB min | RB max |
| As-Welded Tubing | |||||
| 1008 | 30 (205) | 42 (290) | 15 | 50 | |
| 1010 | 32 (220) | 45 (310) | 15 | 55 | |
| 1015 | 35 (240) | 48 (330) | 15 | 58 | |
| 1020 | 38 (260) | 52 (360) | 12 | 62 | |
| 1026 | 45 (310) | 62 (425) | 12 | 68 | |
| 4130 | 55 (380) | 72 (495) | 10 | 80 | |
| 4140 | 70 (485) | 90 (620) | 10 | 85 | |
| ... | |||||
| Normalized Tubing | |||||
| 1008 | 23 (160) | 38 (260) | 30 | 65 | |
| 1010 | 25 (170) | 40 (275) | 30 | 65 | |
| 1015 | 30 (205) | 45 (310) | 30 | 70 | |
| 1020 | 35 (240) | 50 (345) | 25 | 75 | |
| 1026 | 40 (275) | 60 (414) | 25 | 85 | |
| 4130 | 50 (345) | 70 (480) | 20 | 100 | |
| 4140 | 65 (450) | 90 (620) | 20 | 105 | |
| ... | |||||
| Sink-Drawn Tubing | |||||
| 1008 | 38 (260) | 48 (330) | 8 | 65 | |
| 1010 | 40 (275) | 50 (345) | 8 | 65 | |
| 1015 | 45 (310) | 55 (380) | 8 | 67 | |
| 1020 | 50 (345) | 60 (415) | 8 | 70 | |
| 1026 | 55 (380) | 70 (480) | 7 | 77 | |
| ... | |||||
| DOM Tubing | |||||
| 1008 | 50 (345) | 60 (415) | 5 | 73 | |
| 1010 | 50 (345) | 60 (415) | 5 | 73 | |
| 1015 | 55 (380) | 65 (450) | 5 | 77 | |
| 1020 | 60 (415) | 70 (480) | 5 | 80 | |
| 1026 | 70 (480) | 80 (550) | 5 | 85 | |
| 4130 | 85 (585) | 95 (655) | 5 | 90 | |
| 4140 | 100 (690) | 110 (760) | 5 | 90 | |
| ... | |||||
| DOM Stress-Relieved Tubing | |||||
| 1008 | 45 (310) | 55 (380) | 12 | 68 | |
| 1010 | 45 (310) | 55 (380) | 12 | 68 | |
| 1015 | 50 (345) | 60 (415) | 12 | 72 | |
| 1020 | 55 (380) | 65 (450) | 10 | 75 | |
| 1026 | 65 (450) | 75 (515) | 10 | 80 | |
| 4130 | 80 (550) | 90 (620) | 10 | 87 | |
| 4140 | 95 (655) | 105 (725) | 10 | 90 | |
| ... | |||||
ASTM A513 4140 Alloy Steel Pipe Manufacturing Proces
ASTM A513 4140 Alloy Steel Pipe Application

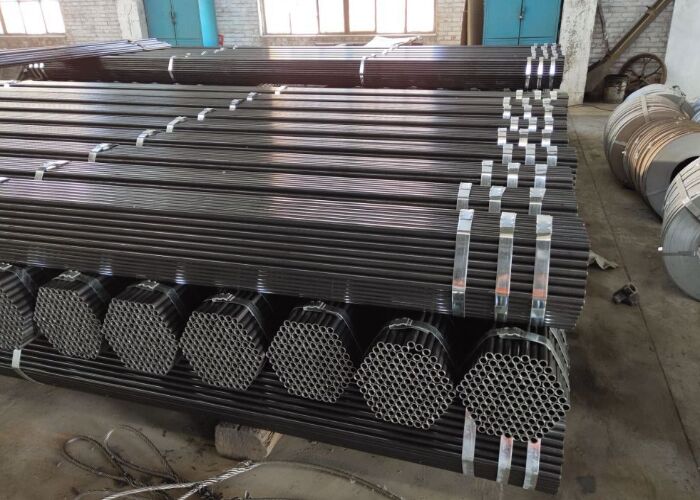

ASTM A513 4140 Alloy Steel Pipe Packing & Loading
a. 1/2"-2"Plain end with black oil paint, caps both ends, bundles with loading belt.
b. 2"-4"Beveled end with black oil paint, caps both ends, bundles with loading belt.
c. 10"-20"Beveled end with black oil paint, caps both ends, loose packed in to container.
→ ASTM A513 4140 Alloy Steel Pipe is transported in containers
