ASTM A106 Hot Rolled Seamless Steel Pipe 10mm to 762mm Black

Name: ASTM A106 Hot Rolled Seamless Steel Pipe 10mm to 762mm Black
Brand: Jinxi Steel Industry Group Co.Ltd.
SKU: Seamless steel Pipe
Price: 1500 USD
Availability: InStock

Brand Name:	Jinxi Pipe
Model Number:	Seamless steel Pipe
MOQ:	1
Price:	1500 USD/TON
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10000000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001,BV,SGS,TUV,CE

Name:

ASTM A106 Hot Rolled Seamless Steel Pipe 10mm To 762mm Black

Standard:

ASTM A106

Steel Pipe Dimensions OD:

1/2" To 2", 3", 4", 6", 8", 10", 12", 16 Inch, 18 Inch, 20 Inch, 24 Inch, 26 Inch To 40 Inch

Pipe Weight Schedule Thickness:

SCH 10, SCH 20, SCH 40, SCH STD, SCH 80, SCH XS, To SCH 160

Packaging Details:

Bundles

Highlight:

ASTM A106 Seamless Steel Pipe

Hot Rolled Seamless Steel Pipe 10mm

ASTM A106 Seamless Steel Tube

Product Description

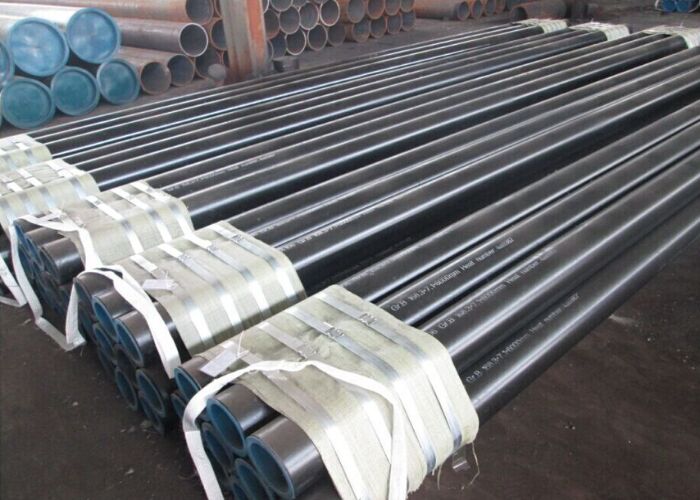

Black Steel Pipe ASTM A106 Hot-Rolled Seamless Steel Pipe 10mm to 762mm Direct From Factory

ASTM A106 and ASME SA106 seamless pressure pipe is commonly used in the construction of oil and gas refineries, power plants, petrochemical plants, boilers, and ships where the piping must transport fluids and gases that exhibit higher temperatures and pressure levels.

ASTM A106 Black Steel Pipe Description

Product Name: Seamless pipe, seamless steel pipe, seamless carbon steel pipe, carbon seamless steel pipe, Seamless Line pipe
Standard and Grade: API 5L /ASTM A106, Grade B; ASTM A53, Gr.A,Gr.B; DN 17175/EN10216-2, Grade ST35, ST45, ST52, 13CrMo44; DIN 2391/EN10305-1, Grade St35, St45, St52; DIN 1629/EN10216-1, Grade St37, St45, St52; JIS G3429 STH11; JIS G3429 STH12; JIS G3429 STH21; JIS G3429 STH22
Steel Pipe Dimensions OD: 1/2" to 2", 3", 4", 6", 8", 10", 12", 16 inch, 18 inch, 20 inch, 24 inch, 26 inch to 40 inch
Pipe Weight Schedule Thickness: SCH 10, SCH 20, SCH 40, SCH STD, SCH 80, SCH XS, to SCH 160
Length Range: 20 FT (6 meter), 40FT (12 meter) or customized
Ends Type: Beveled ends, Plain ends
Protection Caps: Plastic or iron
Surface: Natural, Varnished, Black painting, FBE and 3PE
Manufacturing types: Hot-rolled seamless pipe, Cold drawn (rolled) pipe and tube, Thermal expansion pipe, Cold spinning tube and Squeeze tubes

ASTM A106 Black Steel Pipe Chemical Composition

Grade	Grade A	Grade B	Grade C
Carbon (C) Mx.	0.25	0.3	0.35
Manganese (Mn)	0.27-0.93	0.29-1.06	0.29-1.06
Phosphorus (P) Mx.	0.035	0.035	0.035
Sulfur (S) Mx.	0.035	0.035	0.035
Silicon (Si) Mx.	0.1	0.1	0.1
Chromium (Cr) Mx.	0.4	0.4	0.4
Copper (Cu) Mx.	0.4	0.4	0.4
Molybdenum (Mo) Mx.	0.15	0.15	0.15
Nickel (Ni) Mx.	0.4	0.4	0.4
Vanadium (V) Mx.	0.08	0.08	0.08

ASTM A106 Black Steel Pipe Mechanical Properties

Grade	Tensile Strength (Mpa), Min.	Yield Strength (Mpa), Min.
A	330	205
B	415	240
C	485	275

ASTM A106 Black Steel Pipe Application

Types	Application
Structure Purposes	General structure and mechanical
Liquid Services	Petroleum, gas and other fluids conveying
Low and Medium Pressure Boiler Tube	Steam and boiler manufacturing
Hydraulic Pillar Service	Hydraulic support
Auto Semi-shaft Casing	Auto sem-shaft casing
Line Pipe	Oil and gas conveying
Tubing and Casing	Oil and gas conveying
Drill Pipes	Well drilling
Geological Drilling Pipe	Geological drilling
Furnace tubes, heat exchangers tubes	Furnace tubes, heat exchangers

ASTM A106 Black Steel Pipe Manufacturing Process

ASTM A106 Black Steel Pipe Packing & Loading

1/2"-2" Plain end with black oil paint, caps both ends, bundles with loading belt.
2"-4" Beveled end with black oil paint, caps both ends, bundles with loading belt.
10"-20" Beveled end with black oil paint, caps both ends, loose packed in to container.

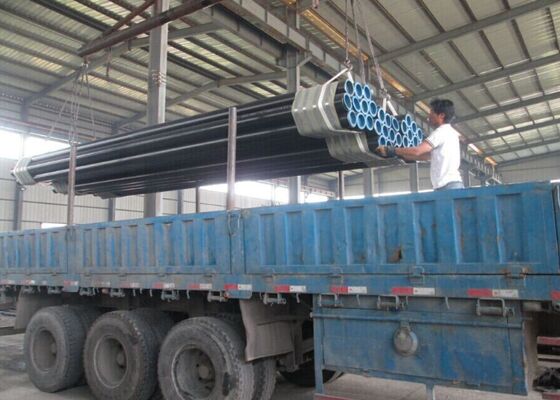

ASTM A106 Black Steel Pipe Shipment Reference
