| Brand Name: | Jinxi Pipe |
| Model Number: | ERW Steel Pipe |
| MOQ: | 1 |
| Price: | 456 USD/TON |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 100000 |
ERW Steel Pipe API 5L A53 Gr.B Black Carbon Steel Welded Pipe
Specifications
Product Name: ERW (Electric Resistance Welded ) Steel Pipe,ERW Steel Pipe, ERW Casing, ERW Carbon Steel Pipe, MS ERW Pipe, GI ERW Pipe, Stainless ERW Pipe
Pipe Standard : API 5L, ASTM A53, ASTM A178, ASTM A500/501, ASTM A691, ASTM A252, ASTM A672, EN 10217
Steel Grade:
API 5L: PSL1/PSL2 Gr.A, Gr.B, X42, X46, X52, X56, X60, X65, X70
ASTM A53: GR.A, GR.B,ASTM A500 JIS G3466
EN: S275, S275JR, S355JRH, S355J2H,EN10219-1 ,EN10217-1
Steel Pipe Dimensions OD: 21.3mm -660mm
Pipe Thickness: 1mm-20mm
Length Range: 20 FT (6 meter), 40FT (12 meter)or customized)
Ends Type: Beveled ends, Plain ends
Protection Caps in plastic or iron
Surface: Natural, Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement.
ERW Steel Pipe Chemical Analysis & Mechanical Properties
| Standard | Class | Grade | Chemical Analysis(%) | Mechanical Properties(min)(Mpa) | ||||
| C | Mn | P | S | Tensile Strength | Yield Strength | |||
| API 5L | PSL1 | B | 0.26 | 1.2 | 0.03 | 0.03 | 414 | 241 |
| X42 | 0.26 | 1.3 | 0.03 | 0.03 | 414 | 290 | ||
| X46 | 0.26 | 1.4 | 0.03 | 0.03 | 434 | 317 | ||
| X52 | 0.26 | 1.4 | 0.03 | 0.03 | 455 | 359 | ||
| X56 | 0.26 | 1.4 | 0.03 | 0.03 | 490 | 386 | ||
| X60 | 0.26 | 1.4 | 0.03 | 0.03 | 517 | 414 | ||
| X65 | 0.26 | 1.45 | 0.03 | 0.03 | 531 | 448 | ||
| X70 | 0.26 | 1.65 | 0.03 | 0.03 | 565 | 483 | ||
| PSL2 | B | 0.22 | 1.2 | 0.025 | 0.015 | 414 | 241 | |
| X42 | 0.22 | 1.3 | 0.025 | 0.015 | 414 | 290 | ||
| X46 | 0.22 | 1.4 | 0.025 | 0.015 | 434 | 317 | ||
| X52 | 0.22 | 1.4 | 0.025 | 0.015 | 455 | 359 | ||
| X56 | 0.22 | 1.4 | 0.025 | 0.015 | 490 | 386 | ||
| X60 | 0.22 | 1.4 | 0.025 | 0.015 | 517 | 414 | ||
| X65 | 0.22 | 1.45 | 0.025 | 0.015 | 531 | 448 | ||
| X70 | 0.22 | 1.65 | 0.025 | 0.015 | 565 | 483 | ||
| X80 | 0.22 | 1.85 | 0.025 | 0.015 | 621 | 552 | ||
ERW Steel Pipe Tolerance of Outside Diameter
| Standard | Out Diameter | Tolerance of Pipe End | Tolerance of Pipe Body |
| API 5L | 219.1～273.1 | +1.6mm, -0.4mm | ±0.75% |
| 274.0～320 | +2.4mm, -0.8mm | ±0.75% | |
| 323.9～457 | +2.4mm, -0.8mm | ±0.75% | |
| 508 | +2.4mm, -0.8mm | ±0.75% | |
| 559～610 | +2.4mm, -0.8mm | ±0.75% |
ERW Steel Pipe Tolerance of Wall Thickness
| Standard | Grade | Out Diameter | Wall Thickness |
| API 5L | A | 219.1～457 | +15%, -12.5% |
| B | 508～610 | +17.5%, -12.5% | |
| X42-X80 | 508～610 | +19.5%, -8% |

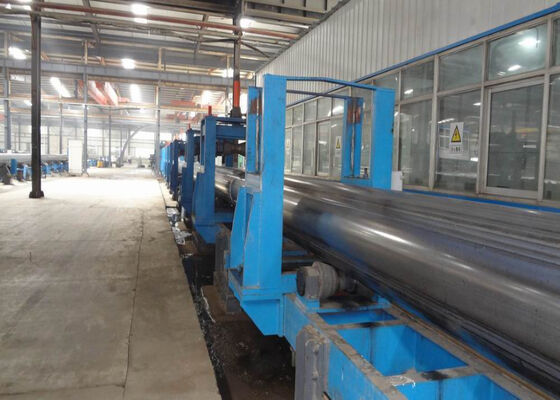

Electric-Resistance Welded (ERW) Steel Pipe Manufacturing Process
High-frequency straight seam electric-resistance welded steel pipe(erw steel pipe) is hot-rolled coil after forming machine, the use of high-frequency current skin effect and proximity effects, the tube edge heating and melting, squeeze roller under pressure welding to achieve production.
High-frequency resistance welding steel pipe, welding pipe and ordinary welding process is not the same, the weld is made of the base metal melt from the body, the mechanical strength is better than the general pipe. Smooth appearance, high precision, low cost weld high and small, favorable 3PE anti-corrosion coating. There are significant differences in the welding methods between high frequency welded pipe and submerged arc welded pipe. As the welding is done instantly at high speed, the difficulty of ensuring the quality of welding is much higher than that of submerged arc welding.

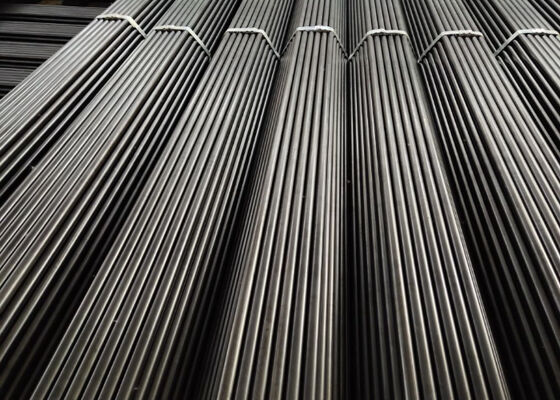

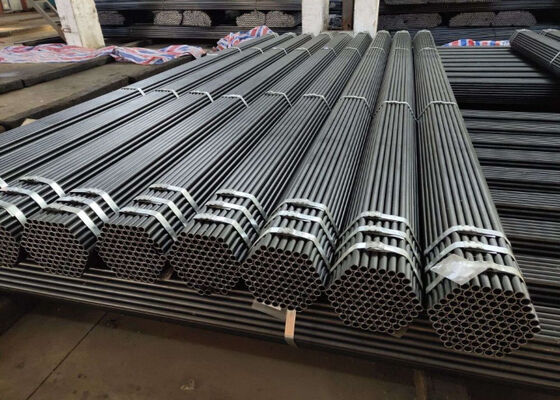

ERW Steel Pipe Packing & Loading

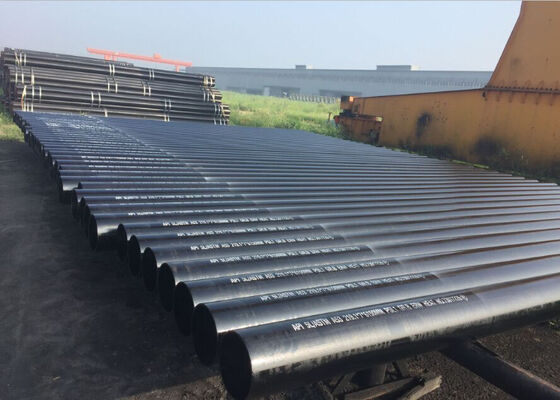

ERW Steel Pipe Shipment Reference
