| Brand Name: | Jinxi Pipe |
| Model Number: | Hollow Section |
| MOQ: | 1 |
| Price: | 400 USD/TON |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 1000000 |

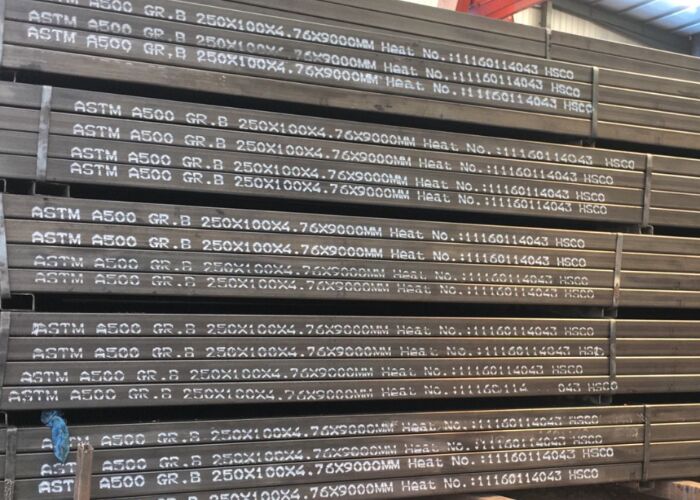

ASTM A500 Square Steel Pipe Hollow Section
Specifications
ASTM A500 is the standard specification for cold-formed, welded, and seamless carbon steel structural tubing. Primarily used in construction and industrial fabrication, these square hollow sections provide a high strength-to-weight ratio. They are produced in Grades A, B, C, and D, with Grade C being the most common due to its superior yield strength (50,000 psi) compared to Grade B (46,000 psi) and Grade A (39,000 psi).
| American Standard | Standard Name |
| A500/A500M | Standard Specification for Cold-Formed Welded and Seamless Carbon Steel Structural Tubing in Rounds and Shapes |
ASTM A500 Square Steel Pipe Chemical Composition
Sources American Standard A500 / A500M TABLE 1 Chemical Requirements
| Element | Composition, % | |||
| Grades A, B and D | Grace C | |||
| Heat | Product | Heat | Product | |
| Analysis | Analysis | Analysis | Analysis | |
| Carbon, max A | 0.26 | 0.3 | 0.23 | 0.27 |
| Manganese, max A | 1.35 | 1.4 | 1.35 | 1.4 |
| Phosphorus, max | 0.035 | 0.045 | 0.035 | 0.045 |
| Sulfur, max | 0.035 | 0.045 | 0.035 | 0.045 |
| Copper, min B | 0.2 | 0.18 | 0.2 | 0.18 |
| A For each reduction of 0.01 percentage point below the specified maximum for carbon, an increase of 0.06 percentage point above the specified maximum for manganese is permitted, up to a maximum of 1.50% by heat analysis and 1.60% by product analysis. B If copper-containing steel is specified in the purchase order. |
||||
ASTM A500 Square Steel Pipe Mechanical Properties
Sources American Standard A500 / A500M TABLE 2 Tensile Requirements
| Round structural tubing | ||||
| Grade A | Grade B | Grade C | Grade D | |
| Tensile strength, min, psi (MPa) | 45,000 (310) | 58,000 (400) | 62,000 (425) | 58,000 (400) |
| Yield strength, min, psi, (MPa) | 33,000 (230) | 42,000 (290) | 46,000 (315) | 36,000 (250) |
| Elongation in 2 in. (50 mm), min, %D | 25A | 23B | 21C | 23B |
| Shaped structural tubing | ||||
| Grade A | Grade B | Grade C | Grade D | |
| Tensile strength, min, psi (MPa) | 45,000 (310) | 58,000 (400) | 62,000 (425) | 58,000 (400) |
| Yield strength, min, psi, (MPa) | 39,000 (270) | 46,000 (315) | 50,000 (345) | 36,000 (250) |
| Elongation in 2 in. (50 mm), min, %D | 25A | 23B | 21C | 23B |
| A Applies to specified wall thicknesses (t) equal to or greater than 0.120 in. (3.05 mm). For lighter specified wall thicknesses, the minimum elongation values shall be calculated by the formula: percent elongation in 2 in. (50mm) = 56t + 17.5, rounded to the nearest percent. For A500M use the following formula: 2.2t + 17.5, rounded to the nearest percent. B Applies to specified wall thicknesses (t) equal to or greater than 0.180 in. (4.57 mm). For lighter specified wall thicknesses, the minimum elongation values shall be calculated by the formula: percent elongation in 2 in. (50 mm) = 61t + 12, rounded to the nearest percent. For A500M use the following formula: 2.4t + 12, rounded to the nearest percent. C Applies to specified wall thicknesses (t) equal to or greater than 0.120 in. (3.05 mm). For lighter specified wall thicknesses, the minimum elongation values shall be by agreement with the manufacturer. D The minimum elongation values specified apply only to tests performed prior to shipment of the tubing. |
||||
ASTM A500 Square Steel Pipe Sizes
| Type | Weight | Height | Width | Wall thickness |
| [kg/m] | [mm] | [mm] | [mm] | |
| 20 x 20 x 2 | 1.1 | 20 | 20 | 2 |
| 20 x 20 x 2.5 | 1.3 | 20 | 20 | 2.5 |
| 25 x 25 x 2 | 14 | 25 | 25 | 2 |
| 25 x 25 x 2.5 | 1.7 | 25 | 25 | 2.5 |
| 25 x 25 x 3 | 2 | 25 | 25 | 3 |
| 30 x 30 x 2 | 1.7 | 30 | 30 | 2 |
| 30 x 30 x 2.5 | 2.1 | 30 | 30 | 2.5 |
| 30 x 30 x 3 | 2.5 | 30 | 30 | 3 |
| 40 x 40 x 2.5 | 2.9 | 40 | 40 | 2.5 |
| 40 x 40 x 3 | 3.4 | 40 | 40 | 3 |
| 40 x 40 x 3.2 | 3.6 | 40 | 40 | 3.2 |
| 40 x 40 x 3.6 | 4 | 40 | 40 | 3.6 |
| 40 x 40 x 4 | 4.4 | 40 | 40 | 4 |
| 40 x 40 x 5 | 5.3 | 40 | 40 | 5 |
| 50 x 50 x 2.5 | 3.7 | 50 | 50 | 2.5 |
| 50 x 50 x 3 | 4.4 | 50 | 50 | 3 |
| 50 x 50 x 3.2 | 4.6 | 50 | 50 | 3.2 |
| 50 x 50 x 3.6 | 5.1 | 50 | 50 | 3.6 |
| 50 x 50 x 4 | 5.6 | 50 | 50 | 4 |
| 50 x 50 x 5 | 6.9 | 50 | 50 | 5 |
| 50 x 50 x 6 | 8 | 50 | 50 | 6 |
| 50 x 50 x 6.3 | 8.3 | 50 | 50 | 6.3 |
| 60 x 60 x 2.5 | 4.5 | 60 | 60 | 2.5 |
| 60 x 60 x 3 | 5.3 | 60 | 60 | 3 |
| 60 x 60 x 3.2 | 5.6 | 60 | 60 | 3.2 |
| 60 x 60 x 3.6 | 6.3 | 60 | 60 | 3.6 |
| 60 x 60 x 4 | 6.9 | 60 | 60 | 4 |
| 60 x 60 x 5 | 8.4 | 60 | 60 | 5 |
| 60 x 60 x 6 | 9.9 | 60 | 60 | 6 |
| 60 x 60 x 6.3 | 10.3 | 60 | 60 | 6.3 |
| 60 x 60 x 8 | 12.5 | 60 | 60 | 8 |
| 70 x 70 x 3 | 6.2 | 70 | 70 | 3 |
| 70 x 70 x 3.2 | 6.6 | 70 | 70 | 3.2 |
| 70 x 70 x 3.6 | 7.4 | 70 | 70 | 3.6 |
| 70 x 70 x 4 | 8.2 | 70 | 70 | 4 |
| 70 x 70 x 5 | 10 | 70 | 70 | 5 |
| 70 x 70 x 6 | 11.8 | 70 | 70 | 6 |
| 70 x 70 x 6.3 | 12.3 | 70 | 70 | 6.3 |
| 70 x 70 x 8 | 15 | 70 | 70 | 8 |
| 80 x 80 x 3 | 7.2 | 80 | 80 | 3 |
| 80 x 80 x 3.2 | 7.6 | 80 | 80 | 3.2 |
| 80 x 80 x 3.6 | 8.5 | 80 | 80 | 3.6 |
| 80 x 80 x 4 | 9.4 | 80 | 80 | 4 |
| 80 x 80 x 5 | 11.6 | 80 | 80 | 5 |
| 80 x 80 x 6 | 13.6 | 80 | 80 | 6 |
| 80 x 80 x 6.3 | 14.2 | 80 | 80 | 6.3 |
| 80 x 80 x 8 | 17.8 | 80 | 80 | 8 |
| 90 x 90 x 5 | 13.1 | 90 | 90 | 5 |
| 90 x 90 x 6 | 15.5 | 90 | 90 | 6 |
| 90 x 90 x 6.3 | 16.2 | 90 | 90 | 6.3 |
| 90 x 90 x 8 | 20.1 | 90 | 90 | 8 |
| 100 x 100 x 3.6 | 10.8 | 100 | 100 | 3.6 |
| 100 x 100 x 4 | 11.9 | 100 | 100 | 4 |
| 100 x 100 x 5 | 14.7 | 100 | 100 | 5 |
| 100 x 100 x 6 | 17.4 | 100 | 100 | 6 |
| 100 x 100 x 6.3 | 18.2 | 100 | 100 | 6.3 |
| 100 x 100 x 8 | 22.6 | 100 | 100 | 8 |
| 100 x 100 x 10 | 27.4 | 100 | 100 | 10 |
| 120 x 120 x 4 | 14.4 | 120 | 120 | 4 |
| 120 x 120 x 5 | 18 | 120 | 120 | 5 |
| 120 x 120 x 6 | 21.2 | 120 | 120 | 6 |
| 120 x 120 x 6.3 | 22.2 | 120 | 120 | 6.3 |
| 120 x 120 x 8 | 27.6 | 120 | 120 | 8 |
| 120 x 120 x 10 | 33.7 | 120 | 120 | 10 |
| 120 x 120 x 12 | 39.5 | 120 | 120 | 12 |
| 120 x 120 x 12.5 | 40.9 | 120 | 120 | 12.5 |
| 140 x 140 x 5 | 21 | 140 | 140 | 5 |
| 140 x 140 x 6 | 24.9 | 140 | 140 | 6 |
| 140 x 140 x 6.3 | 26.1 | 140 | 140 | 6.3 |
| 140 x 140 x 8 | 32.6 | 140 | 140 | 8 |
| 140 x 140 x 10 | 40 | 140 | 140 | 10 |
| 140 x 140 x 12 | 47 | 140 | 140 | 12 |
| 140 x 140 x 12.5 | 48.7 | 140 | 140 | 12.5 |
| 150 x 150 x 5 | 22.6 | 150 | 150 | 5 |
| 150 x 150 x 6 | 26.8 | 150 | 150 | 6 |
| 150 x 150 x 6.3 | 28.1 | 150 | 150 | 6.3 |
| 150 x 150 x 8 | 35.1 | 150 | 150 | 8 |
| 150 x 150 x 10 | 43.1 | 150 | 150 | 10 |
| 150 x 150 x 12 | 50.8 | 150 | 150 | 12 |
| 150 x 150 x 12.5 | 52.7 | 150 | 150 | 12.5 |
| 150 x 150 x 16 | 65.2 | 150 | 150 | 16 |
| 160 x 160 x 5 | 24.1 | 160 | 160 | 5 |
| 160 x 160 x 6 | 28.7 | 160 | 160 | 6 |
| 160 x 160 x 6.3 | 30.1 | 160 | 160 | 6.3 |
| 160 x 160 x 8 | 37.6 | 160 | 160 | 8 |
| 160 x 160 x 10 | 46.3 | 160 | 160 | 10 |
| 160 x 160 x 12 | 54.6 | 160 | 160 | 12 |
| 160 x 160 x 12.5 | 56.6 | 160 | 160 | 12.5 |
| 160 x 160 x 16 | 70.2 | 160 | 160 | 16 |
| 180 x 180 x 5 | 27.3 | 180 | 180 | 5 |
| 180 x 180 x 6 | 32.5 | 180 | 180 | 6 |
| 180 x 180 x 6.3 | 34 | 180 | 180 | 6.3 |
| 180 x 180 x 8 | 42.7 | 180 | 180 | 8 |
| 180 x 180 x 10 | 52.5 | 180 | 180 | 10 |
| 180 x 180 x 12 | 62.1 | 180 | 180 | 12 |
| 180 x 180 x 12.5 | 64.4 | 180 | 180 | 12.5 |
| 180 x 180 x 16 | 80.2 | 180 | 180 | 16 |
| 200 x 200 x 5 SHS | 30.4 | 200 | 200 | 5 |
| 200 x 200 x 6 | 36.2 | 200 | 200 | 6 |
| 200 x 200 x 6.3 | 38 | 200 | 200 | 6.3 |
| 200 x 200 x 8 | 47.7 | 200 | 200 | 8 |
| 200 x 200 x 10 | 58.8 | 200 | 200 | 10 |
| 200 x 200 x 12 | 69.6 | 200 | 200 | 12 |
| 200 x 200 x 12.5 | 72.3 | 200 | 200 | 12.5 |
| 200 x 200 x 16 | 90.3 | 200 | 200 | 16 |
| 220 x 220 x 6 | 40 | 220 | 220 | 6 |
| 220 x 220 x 6.3 | 41.9 | 220 | 220 | 6.3 |
| 220 x 220 x 8 | 52.7 | 220 | 220 | 8 |
| 220 x 220 x 10 | 65.1 | 220 | 220 | 10 |
| 220 x 220 x 12 | 77.2 | 220 | 220 | 12 |
| 220 x 220 x 12.5 | 80.1 | 220 | 220 | 12.5 |
| 220 x 220 x 16 | 100 | 220 | 220 | 16 |
| 250 x 250 x 5 | 38.3 | 250 | 250 | 5 |
| 250 x 250 x 6 | 45.7 | 250 | 250 | 6 |
| 250 x 250 x 6.3 | 47.9 | 250 | 250 | 6.3 |
| 250 x 250 x 8 | 60.3 | 250 | 250 | 8 |
| 250 x 250 x 10 | 74.5 | 250 | 250 | 10 |
| 250 x 250 x 12 | 88.5 | 250 | 250 | 12 |
| 250 x 250 x 12.5 | 91.9 | 250 | 250 | 12.5 |
| 250 x 250 x 16 | 115 | 250 | 250 | 16 |
| 260 x 260 x 6 | 47.6 | 260 | 260 | 6 |
| 260 x 260 x 6.3 | 49.9 | 260 | 260 | 6.3 |
| 260 x 260 x 8 | 62.8 | 260 | 260 | 8 |
| 260 x 260 x 10 | 77.7 | 260 | 260 | 10 |
| 260 x 260 x 12 | 92.2 | 260 | 260 | 12 |
| 260 x 260 x 12.5 | 95.8 | 260 | 260 | 12.5 |
| 260 x 260 x 16 | 120 | 260 | 260 | 16 |
| 300 x 300 x 6 | 55.1 | 300 | 300 | 6 |
| 300 x 300 x 6.3 | 57.8 | 300 | 300 | 6.3 |
| 300 x 300 x 8 | 72.8 | 300 | 300 | 8 |
| 300 x 300 x 10 | 90.2 | 300 | 300 | 10 |
| 300 x 300 x 12 | 107 | 300 | 300 | 12 |
| 300 x 300 x 12.5 | 112 | 300 | 300 | 12.5 |
| 300 x 300 x 16 | 141 | 300 | 300 | 16 |
| 350 x 350 x 8 | 85.4 | 350 | 350 | 8 |
| 350 x 350 x 10 | 106 | 350 | 350 | 10 |
| 350 x 350 x 12 | 126 | 350 | 350 | 12 |
| 350 x 350 x 12.5 | 131 | 350 | 350 | 12.5 |
| 350 x 350 x 16 | 166 | 350 | 350 | 16 |
| 400 x 400 x 8 | 97.9 | 400 | 400 | 8 |
| 400 x 400 x 10 | 122 | 400 | 400 | 10 |
| 400 x 400 x 12 | 145 | 400 | 400 | 12 |
| 400 x 400 x 12.5 | 151 | 400 | 400 | 12.5 |
| 400 x 400 x 16 | 191 | 400 | 400 | 16 |
| 400 x 400 x 20 | 235 | 400 | 400 | 20 |
ASTM A500 Square Steel Pipe Manufacturing Process
ASTM A500 Square Steel Pipe Application
ASTM A500 Square Steel Pipe Packing & Loading
Hollow Section is transported in containers
Hollow Section is transported in containers
