| Brand Name: | Jinxi Pipe |
| Model Number: | Boilar Steel Pipe |
| MOQ: | 1 |
| Price: | 700 USD/ TON |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 1000000 |

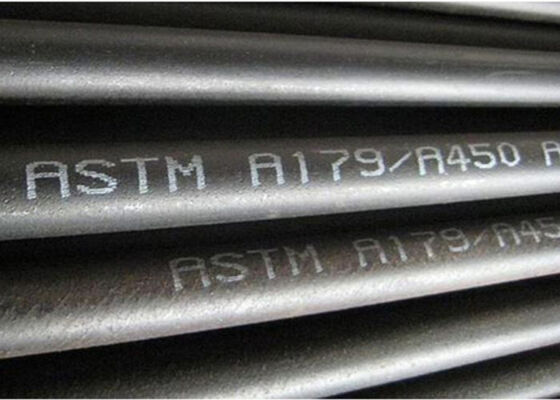

ASME SA179 Boiler Steel Pipe Heat Exchanger and Condenser Tubes
Description
ASME SA179 Boiler Steel Pipe is a standard for seamless cold-drawn low-carbon steel tubes used specifically in heat exchangers, condensers, and similar heat transfer apparatus, valued for their smooth finish, precise dimensions, and excellent thermal conductivity. These tubes offer good tensile strength, corrosion resistance, and durability, making them ideal for power generation, petrochemical, and chemical industries, with tests like hydrostatic, hardness, and flattening ensuring quality for high-pressure, high-temperature applications.
| American Standard | Standard Name |
| SA-179 / SA-179M | Specification For Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger And Condenser Tubes |
ASME SA179 Boiler Steel Pipe Chemical Composition
Sources American Standard SA-179 / SA-179M
| C, % | Mn, % | P, % | S, % |
| 0.06-0.18 | 0.27-0.63 | 0.035 max | 0.035 max |
ASME SA179 Boiler Steel Pipe Mechanical Properties
Sources American Standard SA-179 / SA-179M
| Tensile Strength, MPa | Yield Strength, MPa | Elongation, % | Hardness, HRB |
| 325 min | 180 min | 35 min | 72 max |

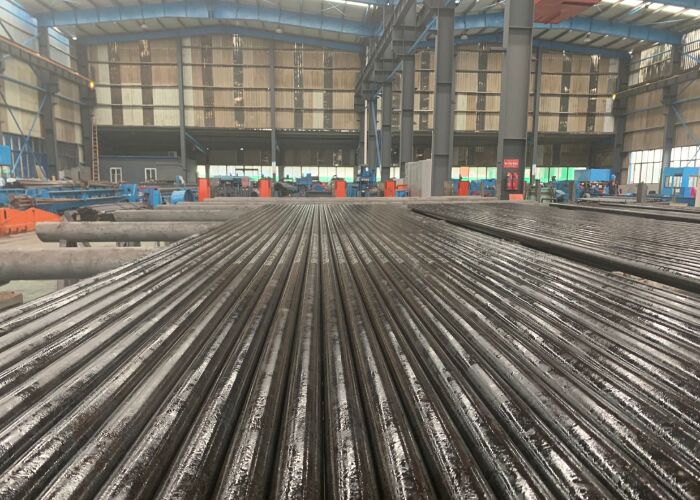

ASME SA179 Boiler Steel Pipe Manufacturing Process
ASME SA179 Boiler Steel Pipe Application
ASME SA179 Boiler Steel Pipe Packing & Loading
a. 1/2"-2"Plain end with black oil paint, caps both ends, bundles with loading belt.
b. 2"-4"Beveled end with black oil paint, caps both ends, bundles with loading belt.
c. 10"-20"Beveled end with black oil paint, caps both ends, loose packed in to container.
ASME SA179 Boilar Steel Pipe Packing
→ASME SA179 Boilar Steel Pipe is transported in containers
