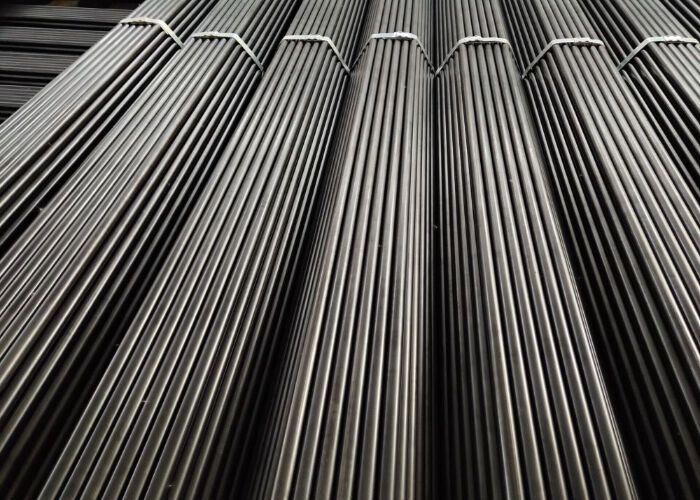

ASTM A513 4130 Alloy Steel Pipe for High-Strength Machinery and Equipment
Description
ASTM A513 Grade 4130 steel pipe is a high-strength, chromium-molybdenum alloy steel tubing made via electric resistance welding (ERW) and often further processed as Drawn Over Mandrel (DOM) (Type 5) for precise dimensions and a smooth finish, used in demanding mechanical/structural roles like auto racing, aerospace, and machinery where high strength, weldability, and forming are needed. It offers better mechanical properties and tighter tolerances than standard structural tubes, making it ideal for chassis, frames, and precision components.
| American Standard | Standard Name |
| A513 / A513M | Standard Specification for Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing |
ASTM A513 4130 Alloy Steel Pipe Chemical Composition
Sources American Standard A513 / A513M TABLE 1 Chemical Requirements for Standard Low-Carbon Steels
| Grade Designation | Chemical Composition Limits, % | ||||||
| Carbon | Manganese | Phosphorus, max |
Sulfur, max |
Nickel | Chromium | Molybdenum | |
| MT1010 | 0.02-0.15 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| MT1015 | 0.10-0.20 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| MT X1015 | 0.10-0.20 | 0.60-0.90 | 0.035 | 0.035 | - | - | - |
| MT1020 | 0.15-0.25 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| MT X1020 | 0.15-0.25 | 0.70-1.00 | 0.035 | 0.035 | - | - | - |
| 1006 | 0.08 max | 0.45 max | 0.030 | 0.035 | - | - | - |
| 1008 | 0.10 max | 0.5 max | 0.035 | 0.035 | - | - | - |
| 1009 | 0.15 max | 0.6 max | 0.035 | 0.035 | - | - | - |
| 1010 | 0.08-0.13 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| 1012 | 0.10-0.15 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| 1015 | 0.13-0.18 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| 1016 | 0.13-0.18 | 0.60-0.90 | 0.035 | 0.035 | - | - | - |
| 1017 | 0.15-0.20 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| 1018 | 0.15-0.20 | 0.60-0.90 | 0.035 | 0.035 | - | - | - |
| 1019 | 0.15-0.20 | 0.70-1.00 | 0.035 | 0.035 | - | - | - |
| 1020 | 0.18-0.23 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| 1021 | 0.18-0.23 | 0.60-0.90 | 0.035 | 0.035 | - | - | - |
| 1022 | 0.18-0.23 | 0.70-1.00 | 0.035 | 0.035 | - | - | - |
| 1023 | 0.20-0.25 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| 1024 | 0.18-0.25 | 1.30-1.65 | 0.035 | 0.035 | - | - | - |
| 1025 | 0.22-0.28 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| 1026 | 0.22-0.28 | 0.60-0.90 | 0.035 | 0.035 | - | - | - |
| 1027 | 0.22-0.29 | 1.20-1.55 | 0.035 | 0.035 | - | - | - |
| 1030 | 0.28-0..34 | 0.60-0.90 | 0.035 | 0.035 | - | - | - |
| 1033 | 0.30-0.36 | 0.70-1.00 | 0.035 | 0.035 | - | - | - |
| 1035 | 0.32-0.38 | 0.60-0.90 | 0.035 | 0.035 | - | - | - |
| 1040 | 0.37-0.44 | 0.60-0.90 | 0.040 | 0.050 | - | - | - |
| 1050 | 0.48-0.55 | 0.60-0.90 | 0.040 | 0.050 | - | - | - |
| 1060 | 0.55-0.65 | 0.60-0.90 | 0.040 | 0.050 | - | - | - |
| 1340 | 0.38-0.43 | 1.60-1.90 | 0.035 | 0.040 | 0.15-0.35 | - | - |
| 1524 | 0.19-0.25 | 1.35-1.65 | 0.040 | 0.050 | - | - | - |
| 4118 | 0.18-0.23 | 0.70-0.90 | 0.035 | 0.040 | 0.15-0.35 | 0.40-0.60 | 0.8-0.15 |
| 4130 | 0.28-0.33 | 0.40-0.60 | 0.035 | 0.040 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
| 4140 | 0.38-0.43 | 0.75-1.0 | 0.035 | 0.040 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
| 5130 | 0.28-0.33 | 0.70-0.90 | 0.035 | 0.040 | 0.15-0.35 | 0.80-1.10 | - |
| 8620 | 0.18-0.23 | 0.70-0.90 | 0.035 | 0.040 | 0.15-0.35 | 0.40-0.70 | 0.15-0.25 |
| 8630 | 0.28-0.33 | 0.70-0.90 | 0.035 | 0.040 | 0.15-0.35 | 0.40-0.70 | 0.15-0.25 |
ASTM A513 4130 Alloy Steel Pipe Mechanical Properties
Sources American Standard A513 / A513M TABLE S5.1 Mechanical Properties for Round Tubing
| A513 Round Tubing | Yield Strength, Ksi (MPa), min | Ultimate Strength, ksi (MPa), min | Elongation in 2 in. or 50 mm. % min | RB min | RB max |
| As-Welded Tubing | |||||
| 1008 | 30 (205) | 42 (290) | 15 | 50 | |
| 1010 | 32 (220) | 45 (310) | 15 | 55 | |
| 1015 | 35 (240) | 48 (330) | 15 | 58 | |
| 1020 | 38 (260) | 52 (360) | 12 | 62 | |
| 1026 | 45 (310) | 62 (425) | 12 | 68 | |
| 4130 | 55 (380) | 72 (495) | 10 | 80 | |
| 4140 | 70 (485) | 90 (620) | 10 | 85 | |
| ... | |||||
| Normalized Tubing | |||||
| 1008 | 23 (160) | 38 (260) | 30 | 65 | |
| 1010 | 25 (170) | 40 (275) | 30 | 65 | |
| 1015 | 30 (205) | 45 (310) | 30 | 70 | |
| 1020 | 35 (240) | 50 (345) | 25 | 75 | |
| 1026 | 40 (275) | 60 (414) | 25 | 85 | |
| 4130 | 50 (345) | 70 (480) | 20 | 100 | |
| 4140 | 65 (450) | 90 (620) | 20 | 105 | |
| ... | |||||
| Sink-Drawn Tubing | |||||
| 1008 | 38 (260) | 48 (330) | 8 | 65 | |
| 1010 | 40 (275) | 50 (345) | 8 | 65 | |
| 1015 | 45 (310) | 55 (380) | 8 | 67 | |
| 1020 | 50 (345) | 60 (415) | 8 | 70 | |
| 1026 | 55 (380) | 70 (480) | 7 | 77 | |
| ... | |||||
| DOM Tubing | |||||
| 1008 | 50 (345) | 60 (415) | 5 | 73 | |
| 1010 | 50 (345) | 60 (415) | 5 | 73 | |
| 1015 | 55 (380) | 65 (450) | 5 | 77 | |
| 1020 | 60 (415) | 70 (480) | 5 | 80 | |
| 1026 | 70 (480) | 80 (550) | 5 | 85 | |
| 4130 | 85 (585) | 95 (655) | 5 | 90 | |
| 4140 | 100 (690) | 110 (760) | 5 | 90 | |
| ... | |||||
| DOM Stress-Relieved Tubing | |||||
| 1008 | 45 (310) | 55 (380) | 12 | 68 | |
| 1010 | 45 (310) | 55 (380) | 12 | 68 | |
| 1015 | 50 (345) | 60 (415) | 12 | 72 | |
| 1020 | 55 (380) | 65 (450) | 10 | 75 | |
| 1026 | 65 (450) | 75 (515) | 10 | 80 | |
| 4130 | 80 (550) | 90 (620) | 10 | 87 | |
| 4140 | 95 (655) | 105 (725) | 10 | 90 | |
| ... | |||||
ASTM A513 4130 Alloy Steel Pipe Manufacturing Proces
ASTM A513 4130 Alloy Steel Pipe Application
ASTM A513 4130 Alloy Steel Pipe Packing & Loading
a. 1/2"-2"Plain end with black oil paint, caps both ends, bundles with loading belt.
b. 2"-4"Beveled end with black oil paint, caps both ends, bundles with loading belt.
c. 10"-20"Beveled end with black oil paint, caps both ends, loose packed in to container.
→ ASTM A513 4130 Alloy Steel Pipe is transported in containers
