| Brand Name: | Jinxi Pipe |
| Model Number: | Alloy Steel Pipe |
| MOQ: | 1 |
| Price: | 1500 USD/TON |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 100000 |

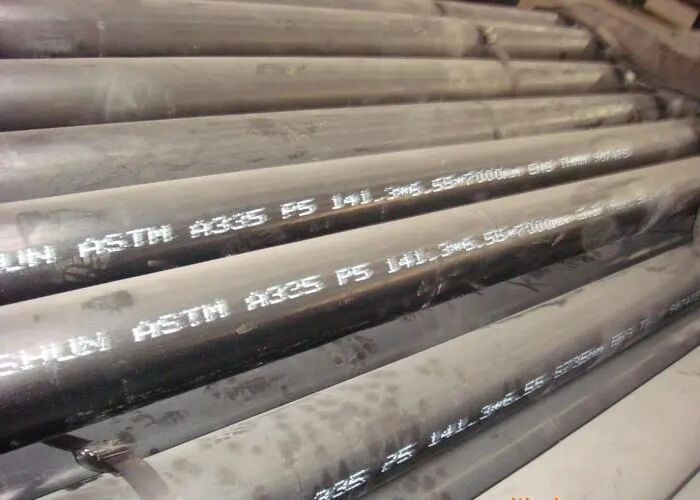

ASTM A335 P5 Seamless Alloy Steel Pipe For High-Pressure Steam Lines
Specification
ASTM A335 P5 Alloy Steel Pipe is a seamless ferritic alloy-steel pipe for high-temperature service, known as chrome moly due to its ~5% Chromium and ~0.5% Molybdenum content, enhancing strength, hardness, and corrosion resistance at high temps, used in power plants and refineries for fluid/gas transport. Key features include specific chemical limits (e.g., <0.15% Carbon), excellent high-temp creep strength, various manufacturing/finishing options (seamless/welded, coated/bare), and certifications like NACE/IBR for demanding industrial applications.
| American Standard | Standard Name |
| A335 / A335M | Standard Specification for Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service |
ASTM A335 P5 Alloy Steel Pipe Chemical Composition
Sources American Standard A335 / A335M TABLE 1 Chemical Requirements
| ASTM A335 Grades |
UNS Designation |
C | Mn | P | S | Si | Cr | Mo |
| P5 | K41545 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.5 | 4.00-6.00 | 0.45-0.65 |
ASTM A335 P5 Alloy Steel Pipe Mechanical Properties
Sources American Standard A335 / A335M TABLE 3 Tensile Requirements
| ASTM A335 Grade |
UNS Designation |
Yield strength, Min:ksi/MPa |
Tensile strength, Min:ksi/MPa |
Elongation Requirements % (Min) | Hardness Requirements (Max) | ||
| Brinell | Vickers | Rockwell | |||||
| P5 | K41545 | 30/205 | 60/415 | 30 | – | - | – |
ASTM A335 P5 Alloy Steel Pipe Heat Treatment
Sources American Standard A335 / A335M TABLE 2 Heat Treatment Requirements A
|
ASTM A335 Grade |
Heat Treatment Type | Normalizing Temperature Range F [C] | Cooling Media | Subcritical Annealing or Tempering Temperature,min or range“F[°C] |
| P5 | full or isothemmal anneal or | - | - | - |
| normalize and temper or | - | - | 1250 [675] | |
| P5b | full or isothemmal anneal or | - | - | - |
| normalize and temper or | - | - | 1250 [675] | |
| P5c | subcritical anneal | - | - | 1325 - 1375 [715 - 745] |
| A Where ellipses (_) appear in this table there is no requirement. |
||||
ASTM A335 P5 Alloy Steel Pipe Permissible Variations in Outside Diameter
Sources American Standard A335 / A335M TABLE 7 Permissible Variations in Outside Diameter
|
NPS [DN] Designator |
Over | Under | ||
| in. | mm | in. | mm | |
| 1/8 to 1 1/2 [6 to 40], incl. | 1/64 (0.015) | 0.4 | 1/64 (0.015) | 0.4 |
| Over 1 1/2 to 4 [40 to 100], incl. | 1/32 (0.031) | 0.79 | 1/32 (0.031) | 0.79 |
| Over 4 to 8 [100 to 200], incl. | 1/16 (0.062) | 1.59 | 1/32 (0.031) | 0.79 |
| Over 8 to 12 [200 to 300], incl. | 3/32 (0.093) | 2.38 | 1/32 (0.031) | 0.79 |
| Over 12 [300] | +/- 1% of the specified outside diameter | |||
ASTM A335 P5 Alloy Steel Pipe Permitted Variations in Wall Thickness
Sources American Standard A335 / A335M TABLE 8 Permitted Variations in Wall Thickness
| NPS [DN] Designator | Tolerance, % from Specified | |
| Over | Under | |
| 1/8 to 2 1/2 [6 to 65] incl., all t/D ratios | 20.00% | 12.50% |
| Above 2 1/2 [65], t/D < or = 5% | 22.50% | 12.50% |
| Above 2 1/2 [65], t/D > 5% | 15.00% | 12.50% |
| (t = Specified Wall Thickness; D = Specified Outside Diameter) | ||
ASTM A335 P5 Alloy Steel Pipe Manufacturing Proces
ASTM A335 P5 Alloy Steel Pipe Application
ASTM A335 P5 Alloy Steel Pipe Packing & Loading
a. 1/2"-2"Plain end with black oil paint, caps both ends, bundles with loading belt.
b. 2"-4"Beveled end with black oil paint, caps both ends, bundles with loading belt.
c. 10"-20"Beveled end with black oil paint, caps both ends, loose packed in to container.
→Alloy Steel Pipes is transported in containers
