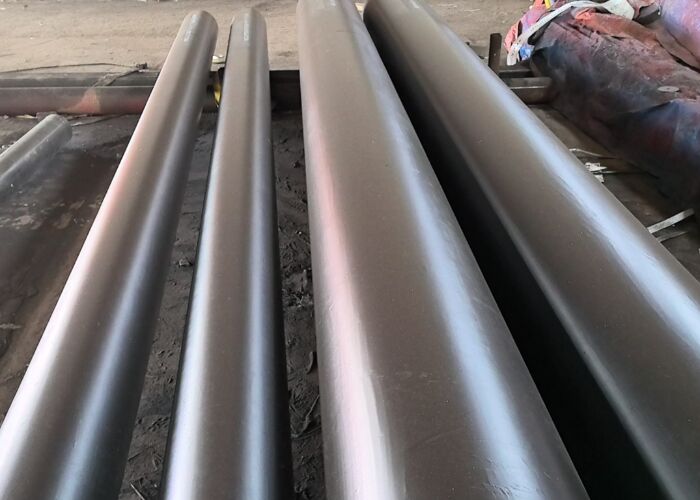

ASTM A213 T92 Alloy Steel Tube For Petrochemical Furnaces
Specification
ASTM A213 T92 alloy steel tube is designed for high-pressure, high-temperature applications like power generation, petrochemicals, and oil and gas industries. Its key features include high-temperature strength, creep resistance, and oxidation and corrosion resistance, attributed to its chemical composition which contains approximately 9% chromium and molybdenum. The tubes are manufactured to handle critical services in boilers, superheaters, and heat exchangers.
| American Standard | Standard Name |
| A213 / A213M | Seamless Ferritic and Austenitic Alloy-steel Boiler,Superheater and Heat-Exchanger Tubes |
ASTM A213 T92 Alloy Steel Pipe Chemical Composition
Sources American Standard A213 / A213M TABLE 1 Chemical Composition Limits, % , for Low Alloy Steel
| Grade | UNS Designation |
C | Mn | P | S | Si | Ni | Cr | Mo | V | B | Nb | N | Al | W | Others |
| T92 | K92460 | 0.07-0.13 | 0.30-0.60 | 0.02 | 0.01 | 0.5 | 0.4 | 8.5-9.5 | 0.30-0.60 | 0.15-0.25 | 0.001-0.006 | 0.04-0.09 | 0.03-0.07 | 0.02 | 1.5-*2.0 | Ti 0.01 Zr 0.01 |
ASTM A213 T92 Alloy Steel Pipe Mechanical Properties
Sources American Standard A213 / A213M TABLE 4 Tensile and Hardness Requirements
| Grade Low Aloy Steels: |
UNS Designation |
TensileStrength. min, ksi [MPa] |
Yield Strength ,min, ksi [MPa] |
Elongationin 2 in. or 50 mm. min, %B.C |
HardnessA | |
| Brinell/Vickers | Rockwell | |||||
| T92 | K92460 | 90 [620] | 64 [440] | 20 | 250 HBW/ 265 HV | 25 HRC |
ASTM A213 T92 Alloy Steel Pipe Heat Treatment
Sources American Standard A213 / A213M TABLE 3 Heat Treatment and Grain Size Requirements A
| Grade Ferritic Alloy Steels |
UNS Designation |
Heat Treatment Type | Austenitizing/Solution Treatment StabilizingTemperature,min or range °F [°C] |
Cooling Media | Subcritical Annealingor TemperingTemperature,min or range °F [°C] |
| T92 | K92460 | normalize and temper | 1900-1975[1040-1080] | - | 1350-1470[730-800] |
ASTM A213 T92 Alloy Steel Pipe Manufacturing Proces
ASTM A213 T92 Alloy Steel Pipe Application
ASTM A213 T92 Alloy Steel Pipe Packing & Loading
a. 1/2"-2"Plain end with black oil paint, caps both ends, bundles with loading belt.
b. 2"-4"Beveled end with black oil paint, caps both ends, bundles with loading belt.
c. 10"-20"Beveled end with black oil paint, caps both ends, loose packed in to container.
→Alloy Steel Pipes is transported in containers
