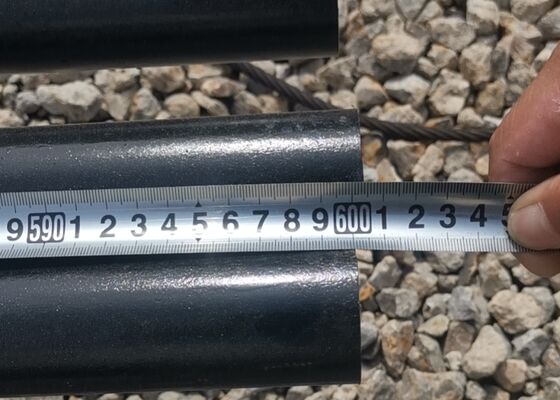

ASTM A213 T17 Alloy Steel Tube For Superheater and Reheater Sections in Boilers
Specification
ASTM A213 T17 alloy steel tube is a seamless steel tube made from a specific chrome-moly alloy, designed for high-temperature applications like boilers, superheaters, and heat exchangers. Key features include its high-temperature and corrosion resistance, durability, and suitability for pressure vessel use.
| American Standard | Standard Name |
| A213 / A213M | Seamless Ferritic and Austenitic Alloy-steel Boiler,Superheater and Heat-Exchanger Tubes |
ASTM A213 T17 Alloy Steel Pipe Chemical Composition
Sources American Standard A213 / A213M TABLE 1 Chemical Composition Limits, % , for Low Alloy Steel
| Grade | UNS Designation |
C | Mn | P | S | Si | Cr | V |
| T17 | K12047 | 0.15-0.25 | 0.30-0.61 | 0.025 | 0.025 | 0.15-0.35 | 0.80-1.25 | 0.15 |
ASTM A213 T17 Alloy Steel Pipe Mechanical Properties
Sources American Standard A213 / A213M TABLE 4 Tensile and Hardness Requirements
| Grade Low Aloy Steels: |
UNS Designation |
TensileStrength. min, ksi [MPa] |
Yield Strength ,min, ksi [MPa] |
Elongationin 2 in. or 50 mm. min, %B.C |
HardnessA | |
| Brinell/Vickers | Rockwell | |||||
| T17 | K12047 | 60 [415] | 30 [205] | 30 | 163 HB/170 HV | 85 HRB |
ASTM A213 T17 Alloy Steel Pipe Heat Treatment
Sources American Standard A213 / A213M TABLE 3 Heat Treatment and Grain Size Requirements A
| Grade Ferritic Alloy Steels |
UNS Designation |
Heat Treatment Type | Cooling Media | Subcritical Annealingor TemperingTemperature,min or range °F [°C] |
| T17 | K12047 | full or isothermal anneal | - | - |
| normalize and temper | - | 1200[650] |
ASTM A213 T17 Alloy Steel Pipe Manufacturing Proces
ASTM A213 T17 Alloy Steel Pipe Application
ASTM A213 T17 Alloy Steel Pipe Packing & Loading
a. 1/2"-2"Plain end with black oil paint, caps both ends, bundles with loading belt.
b. 2"-4"Beveled end with black oil paint, caps both ends, bundles with loading belt.
c. 10"-20"Beveled end with black oil paint, caps both ends, loose packed in to container.
→Alloy Steel Pipes is transported in containers
