| Brand Name: | Jinxi Pipe |
| Model Number: | Alloy Steel Pipe |
| MOQ: | 1 |
| Price: | 1500 USD/TON |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 100000 |

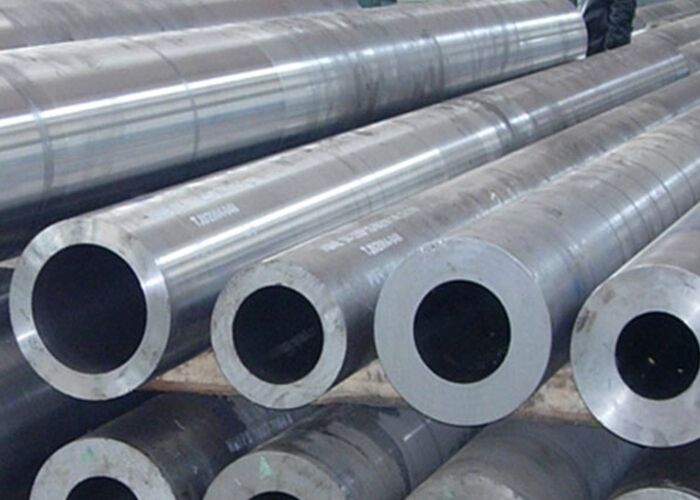

ASTM A213 T5 Alloy Steel Pipe For Power Generation Boilers
Specification
ASTM A213 T5 alloy steel pipe is a seamless alloy steel tube specified for high-temperature applications like boilers, superheaters, and heat exchangers. It is a ferritic steel with excellent heat and corrosion resistance due to its composition of chromium (4.00-6.00%) and molybdenum (0.45-0.65%). The material has good strength (415 MPa tensile, 205 MPa yield) and is ductile and tough, even at low temperatures.
| American Standard | Standard Name |
| A213 / A213M | Seamless Ferritic and Austenitic Alloy-steel Boiler,Superheater and Heat-Exchanger Tubes |
ASTM A213 T5 Alloy Steel Pipe Chemical Composition
Sources American Standard A213 / A213M TABLE 1 Chemical Composition Limits, % , for Low Alloy Steel
| Grade | UNS Designation |
C | Mn | P | S | Si | Cr | Mo | Others |
| T5 | K41545 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.5 | 4.00-6.00 | 0.45-0.65 | ... |
| T5b | K51545 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 1.00-2.00 | 4.00-6.00 | 0.45-0.65 | ... |
| T5c | K41245 | 0.12 | 0.30-0.60 | 0.025 | 0.025 | 0.5 | 4.00-6.00 | 0.45-0.65 | Ti 4xC-0.70 |
ASTM A213 T5 Alloy Steel Pipe Mechanical Properties
Sources American Standard A213 / A213M TABLE 4 Tensile and Hardness Requirements
| Grade Low Aloy Steels: |
UNS Designation |
TensileStrength. min, ksi [MPa] |
Yield Strength ,min, ksi [MPa] |
Elongationin 2 in. or 50 mm. min, %B.C |
HardnessA | |
| Brinell/Vickers | Rockwell | |||||
| T5b | K51545 | 60 [415] | 30 [205] | 30 | 179 HBW/190 HV | 89 HRB |
| T5,T5C | K41545, K41245 |
60 [415] | 30 [205] | 30 | 163 HB/170 HV | 85 HRB |
ASTM A213 T5 Alloy Steel Pipe Heat Treatment
Sources American Standard A213 / A213M TABLE 3 Heat Treatment and Grain Size Requirements A
| Grade Ferritic Alloy Steels |
UNS Designation |
Heat Treatment Type | Cooling Media | Subcritical Annealingor TemperingTemperature,min or range °F [°C] |
| T5 | K41545 | full or isothermal anneal | - | - |
| normalize and temper | - | 1250[675] | ||
| T5b | K51545 | full or isothermal anneal | - | - |
| normalize and temper | - | 1250[675] | ||
| T5c | K41245 | subcritical anneal | air or furnace | 1350[730] |
ASTM A213 T5 Alloy Steel Pipe Manufacturing Proces
ASTM A213 T5 Alloy Steel Pipe Application
ASTM A213 T5 Alloy Steel Pipe Packing & Loading
a. 1/2"-2"Plain end with black oil paint, caps both ends, bundles with loading belt.
b. 2"-4"Beveled end with black oil paint, caps both ends, bundles with loading belt.
c. 10"-20"Beveled end with black oil paint, caps both ends, loose packed in to container.
→Alloy Steel Pipes is transported in containers
